From: Experimental and empirical evidence shows that reducing weed control in winter cereal fields is a viable strategy for farmers

Figure 4

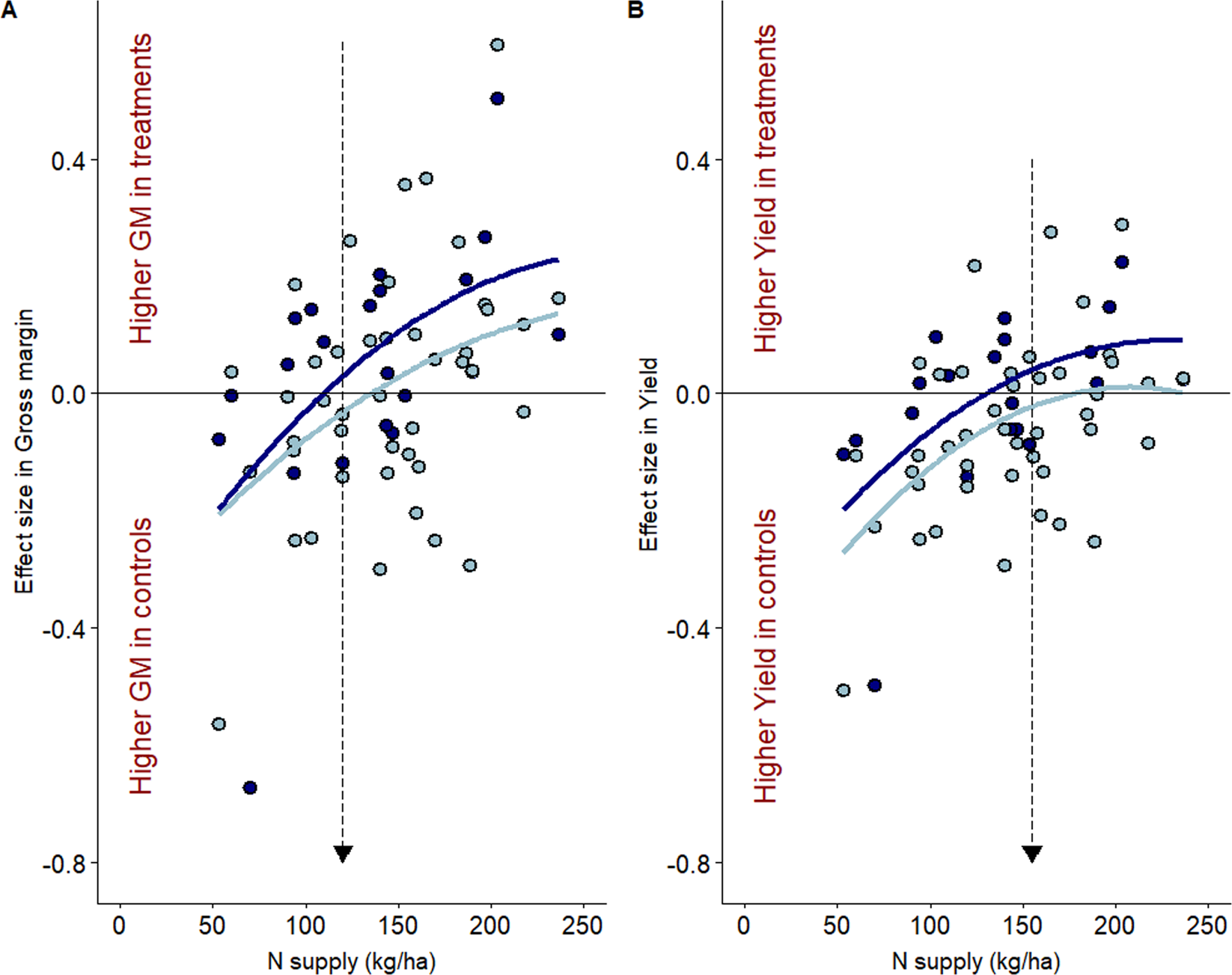

Relationship between the effect size ratio in Gross margin (A) and Yield (B), and farmers’ N supply in CF fields. Effect size ratio were computed between control and (i) weed control reduction with no change in N supply (NW0/NW−) or (ii) weed control reduction when N supply is reduced (N−W0/N−W−). Treatments are indicated by the different colours: light blue for N−W0/N−W−, and dark blue for NW0/NW−. Lines show saturated relationships. Arrows highlight N supply threshold over which reducing weed control alone or with N supply benefits gross margin (A) and yield (B). Positive values indicate that GM (A) or Yield (B) are higher in treatment plots than in control ones. While negative values indicate that higher gross margins or yields are obtained under farmers’ current strategies (controls). Relationships between the effect size ratio in Gross margin and Yield, and farmers’ N supply in OF fields are shown in Supplementary Fig. S4).
