Figure 1 | Scientific Reports

Figure 1

From: YB-1 recruitment to stress granules in zebrafish cells reveals a differential adaptive response to stress

Figure 1

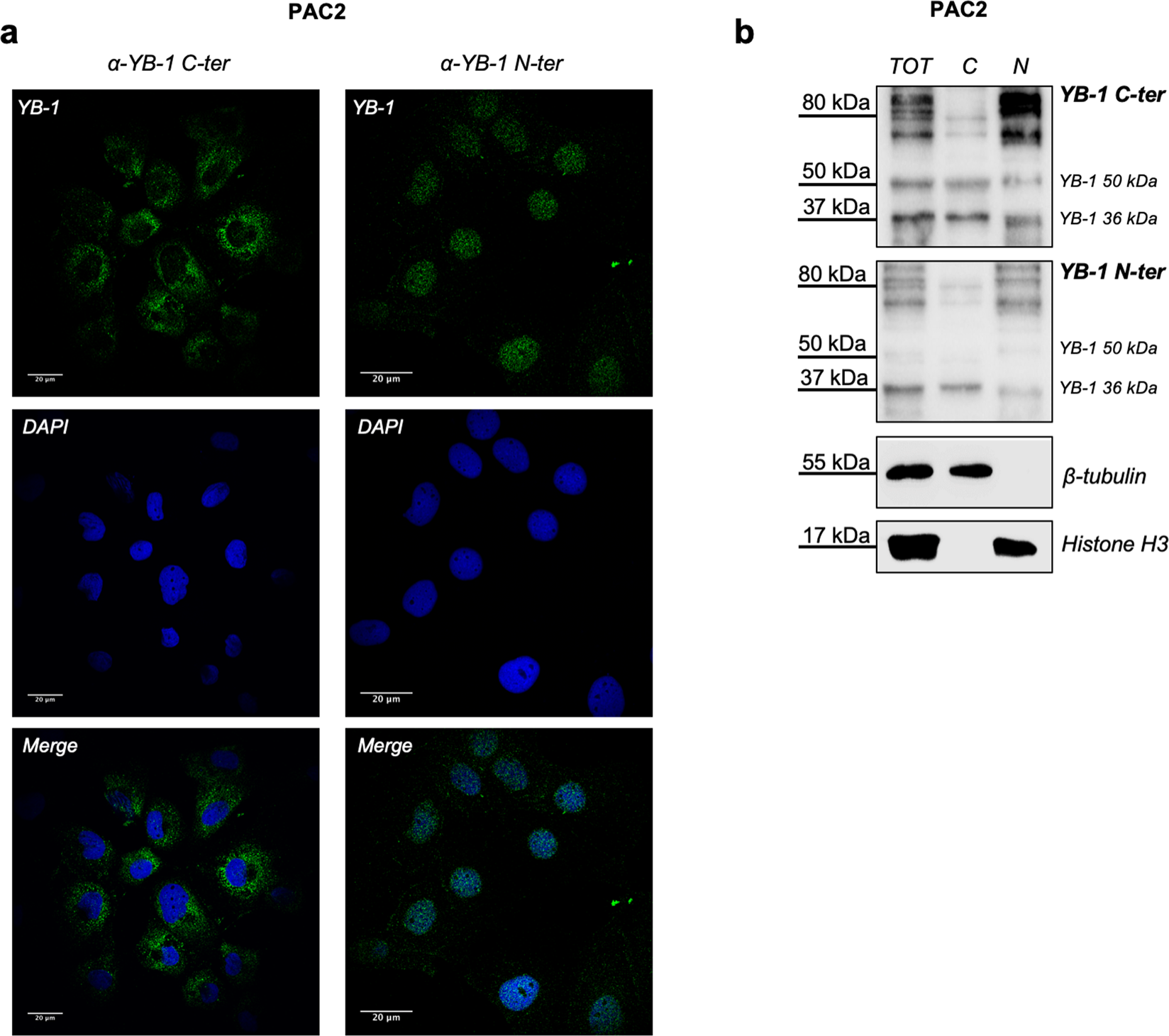

Immunoreactivity of human YB-1 antibodies against zebrafish YB-1. (a) confocal immunofluorescence analysis of PAC2 cells stained with human YB-1 antibodies (α-YB-1 C-ter and α-YB-1 N-ter), nuclei were stained with DAPI (blue); (b) western blot of PAC2 total (TOT), Cytoplasmic (C) and nuclear (N) protein extracts analysed with α-YB-1 N-ter and α-YB-1 C-ter antibodies; Histone H3 and ß-tubulin were used as loading controls for the nuclear and cytoplasmic extracts, respectively. Each panel is assembled from cropped western blotting images (see Supplementary Material file for the original images).
