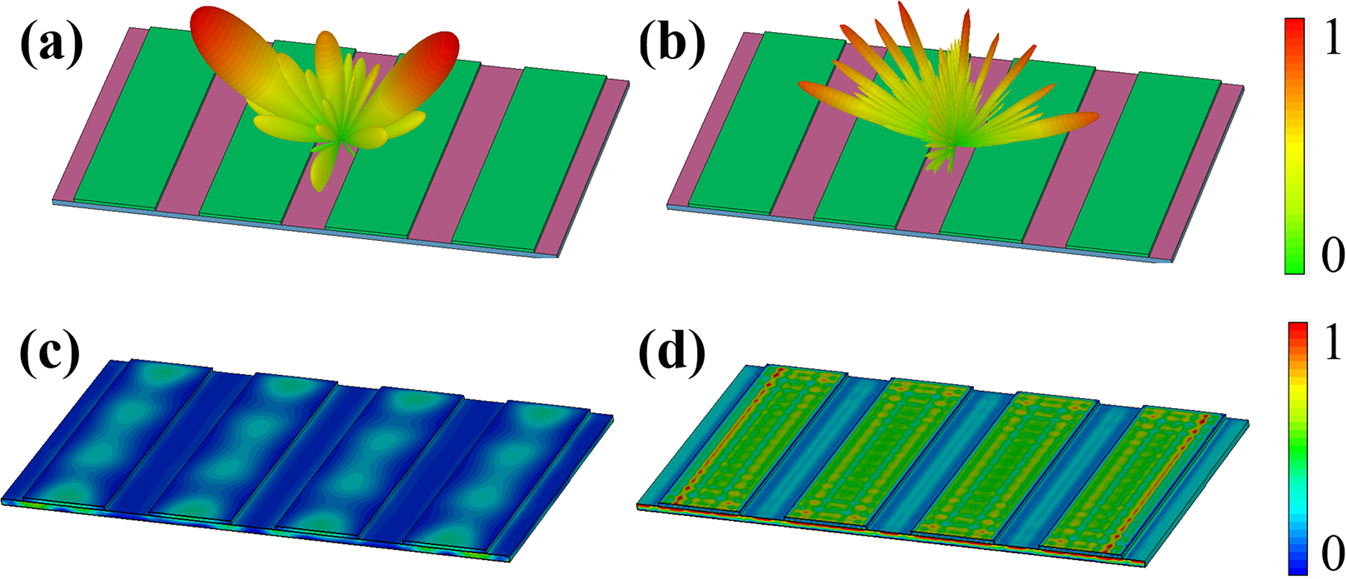

Figure 3

Full-wave simulation results of the proposed 1D grating integrated Salisbury screen under normal incidence of EM waves. The 3D scattering pattern at (a) 4.5 GHz and (b) 16 GHz. The power loss density distributions at (c) 4.5 GHz and (d) 16 GHz.
