From: Broadband and Tunable RCS Reduction using High-order Reflections and Salisbury-type Absorption Mechanisms

Figure 4

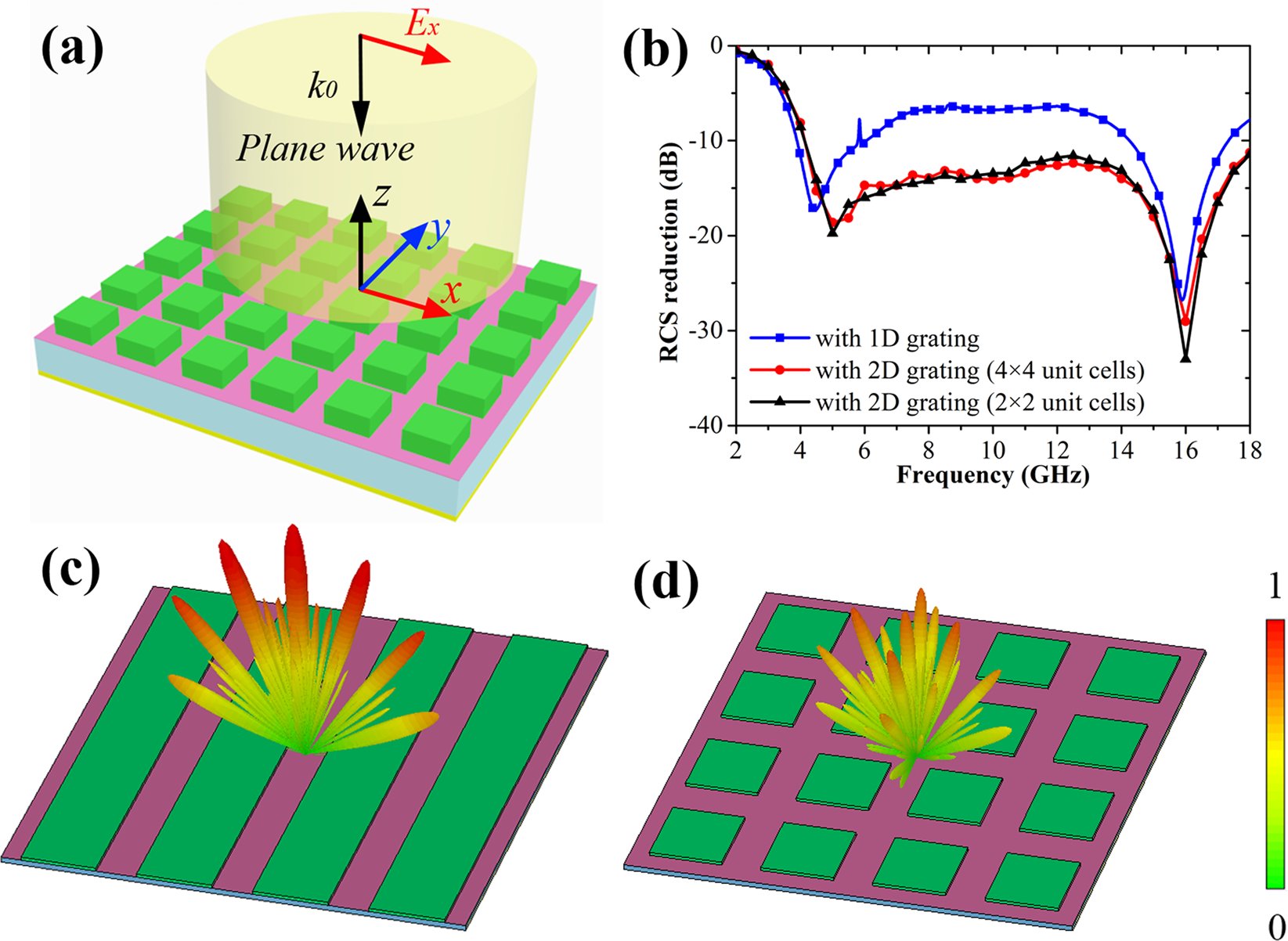

Schematic of the proposed 2D grating integrated Salisbury screen and its RCS reduction performance. (a) 3D-view of the 2D grating integrated Salisbury screen. (b) Simulated RCS reduction performance of the grating integrated Salisbury screen under normal incidence. (c,d) Simulated 3D scattering patterns of the proposed 1D and 2D grating integrated Salisbury screen at 10 GHz.
