Figure 1
From: Loss of MafA and MafB expression promotes islet inflammation

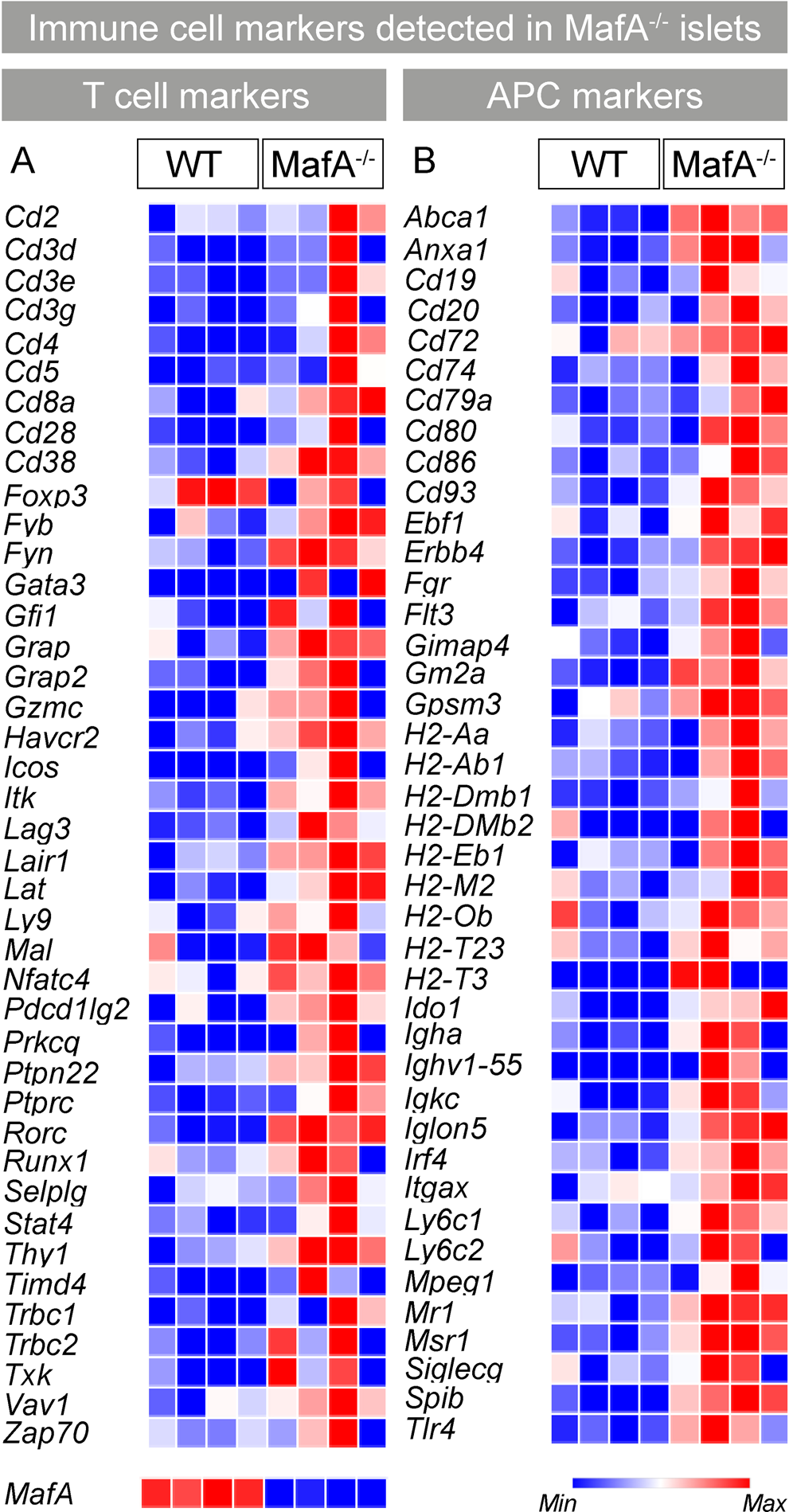

8 months old MafA−/− islets showed enrichment of immune cell-specific genes. (A,B) Heat maps generated using Log-CPM values show (A) T cells and (B) macrophages, B and dendritic cells (APC) specific genes expression in islets. (B) Color gradient (last row on right heatmap) represents expression of each gene/sample (red = highest expression (Max); deep blue = lowest expression (Min); white = intermediate expression). (A) Last row on left heatmap shows MafA expression. N = 4 mice/genotype. Log-FC, P Value and FDR values are shown in Supplementary Table S1.
