Figure 5
From: CRED: A Deep Residual Network of Convolutional and Recurrent Units for Earthquake Signal Detection

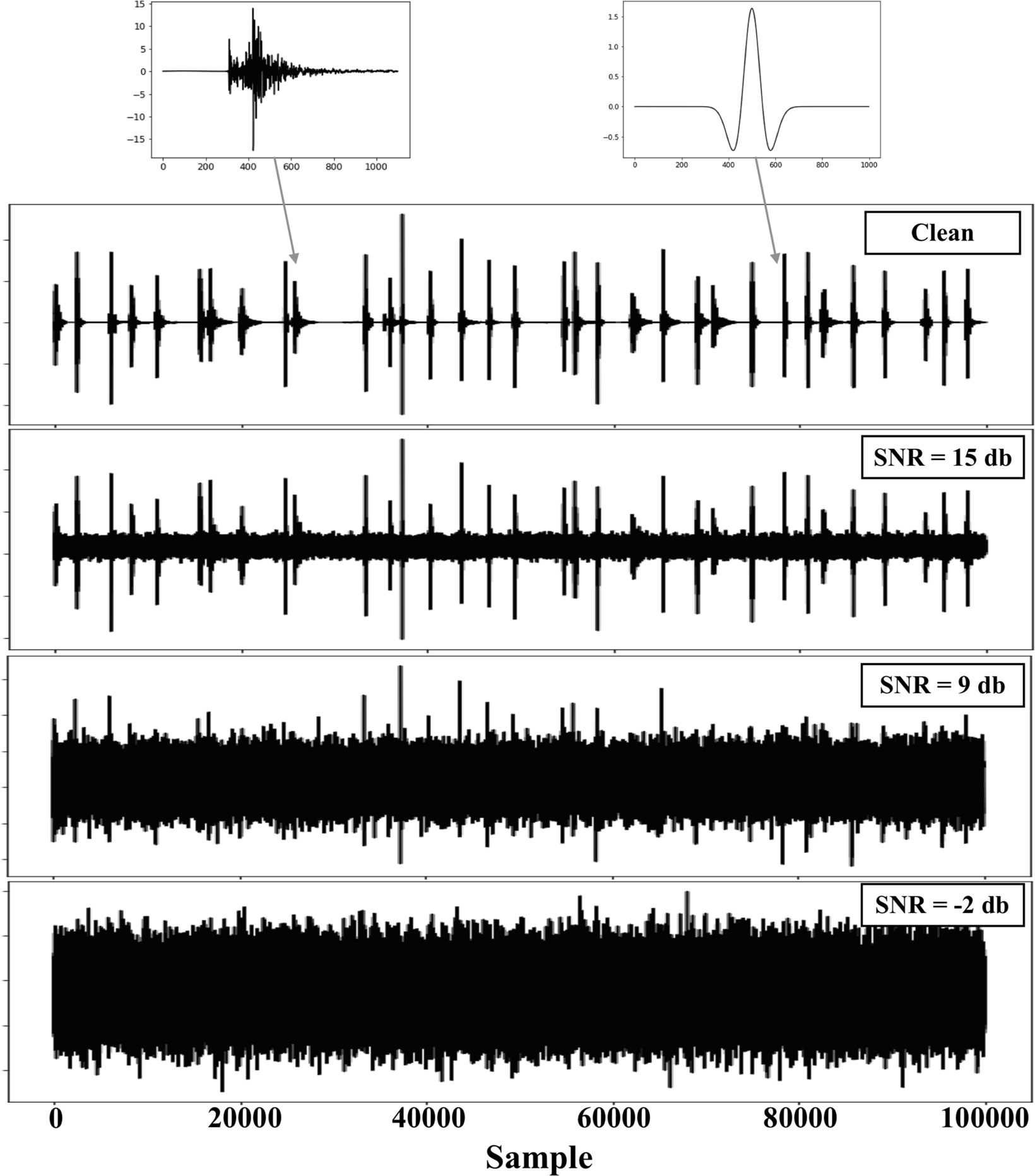

1000 seconds of the generated syntheticseismogram (vertical component) with the different noise level. The insets atthe top present one example of the earthquake and non-earthquake signals.
