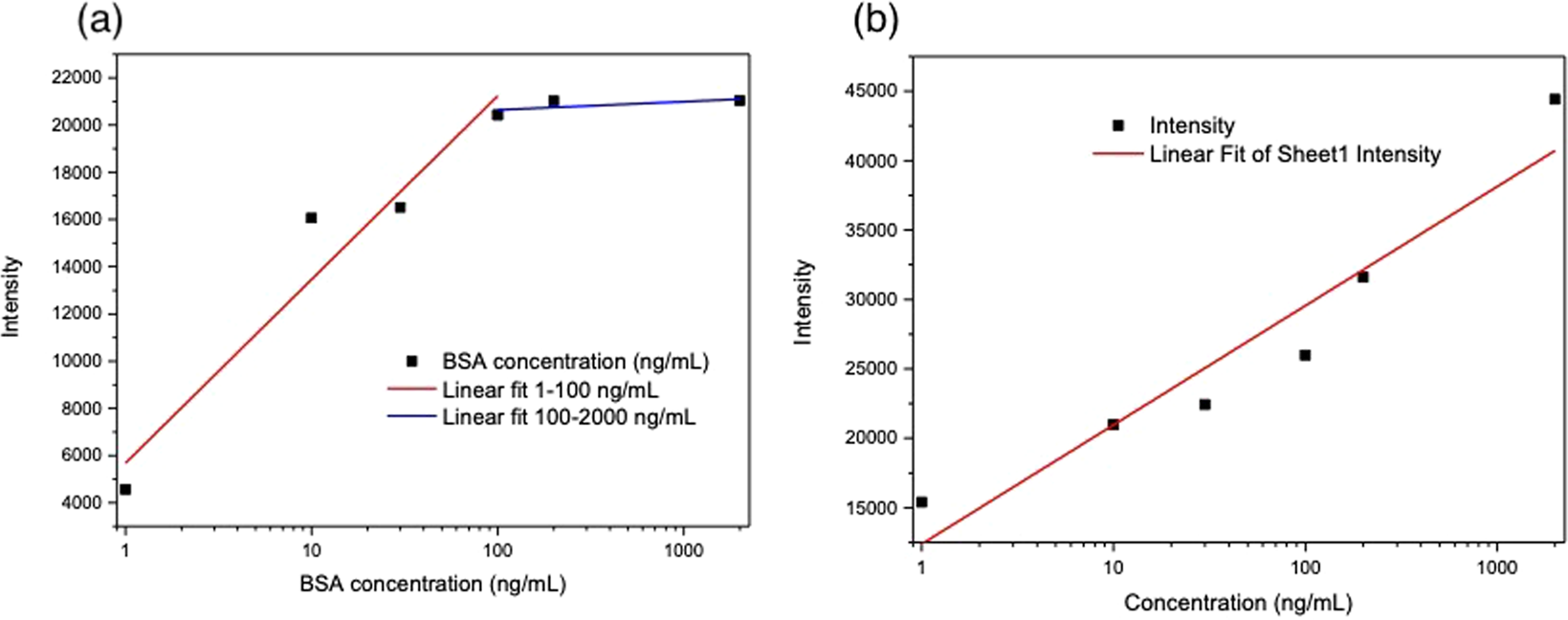

Figure 6
The SERS intensity of BSA concentration 1–2000 ng/mL immune with IgG (a) gold npls chip with external magnetic field 12.5 gauss. (b) Single (Au/Fe2O3/Au) irion-oxide layer biochip. The laser intensity is 0.6 mW and the acquisition time is 10 sec.
