Figure 4 | Scientific Reports

Figure 4

From: Elucidation of the more myopic eye in anisometropia: the interplay of laterality, ocular dominance, and anisometropic magnitude

Figure 4

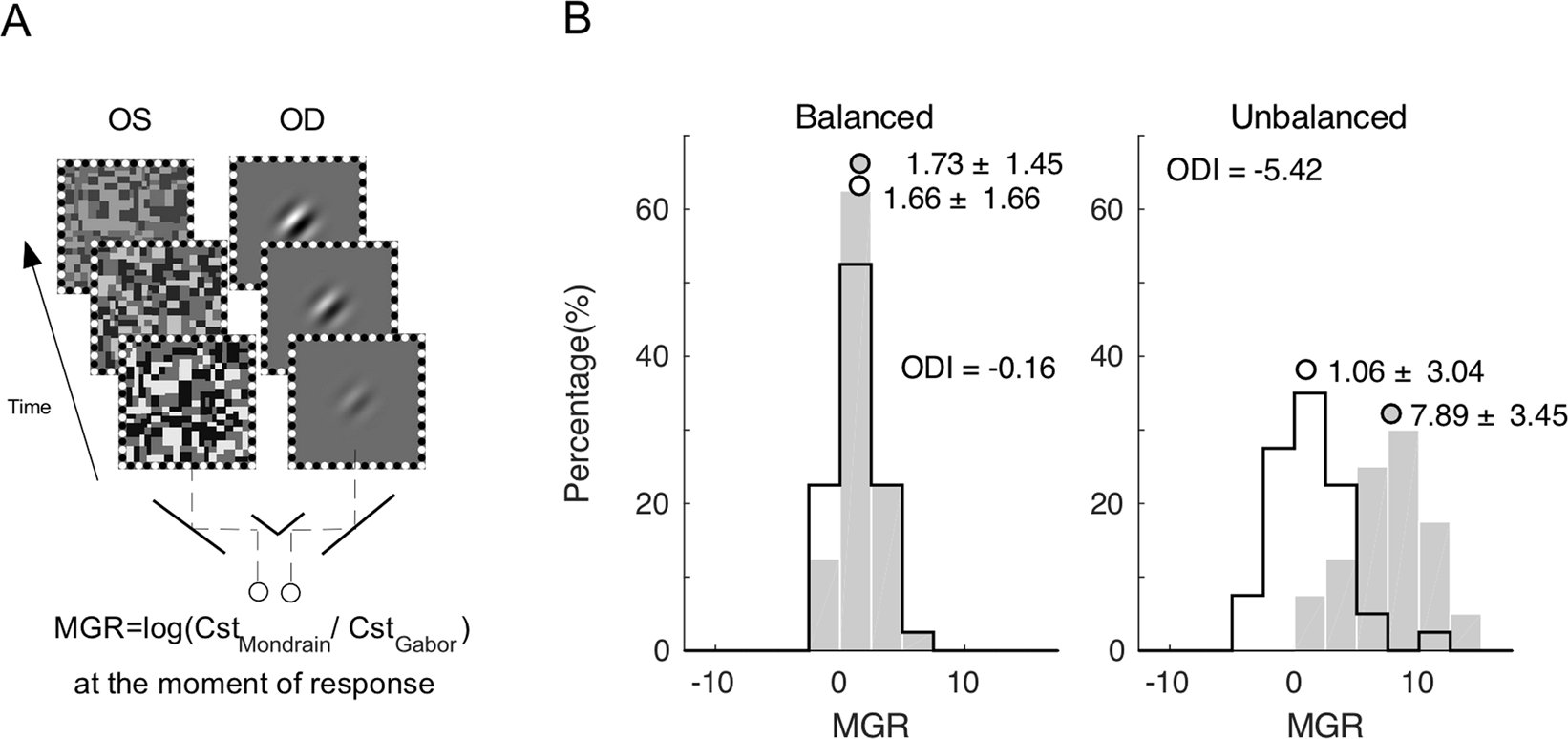

The method to measure ocular dominance. (A) The Mondrian/Gabor contrast ratio (MGR = Log (CstMondrian/CstGabor) was calculated at the time of response in each trial and each eye was tested 50 times. (B) Examples of subjects with balanced eyes (left panel) and unbalanced eyes (right panel) are shown here. The open and filled bars represent the right and left eyes’ MGR values, respectively. The open and filled circles represent the right and left eyes’ median values of MGR, respectively.
