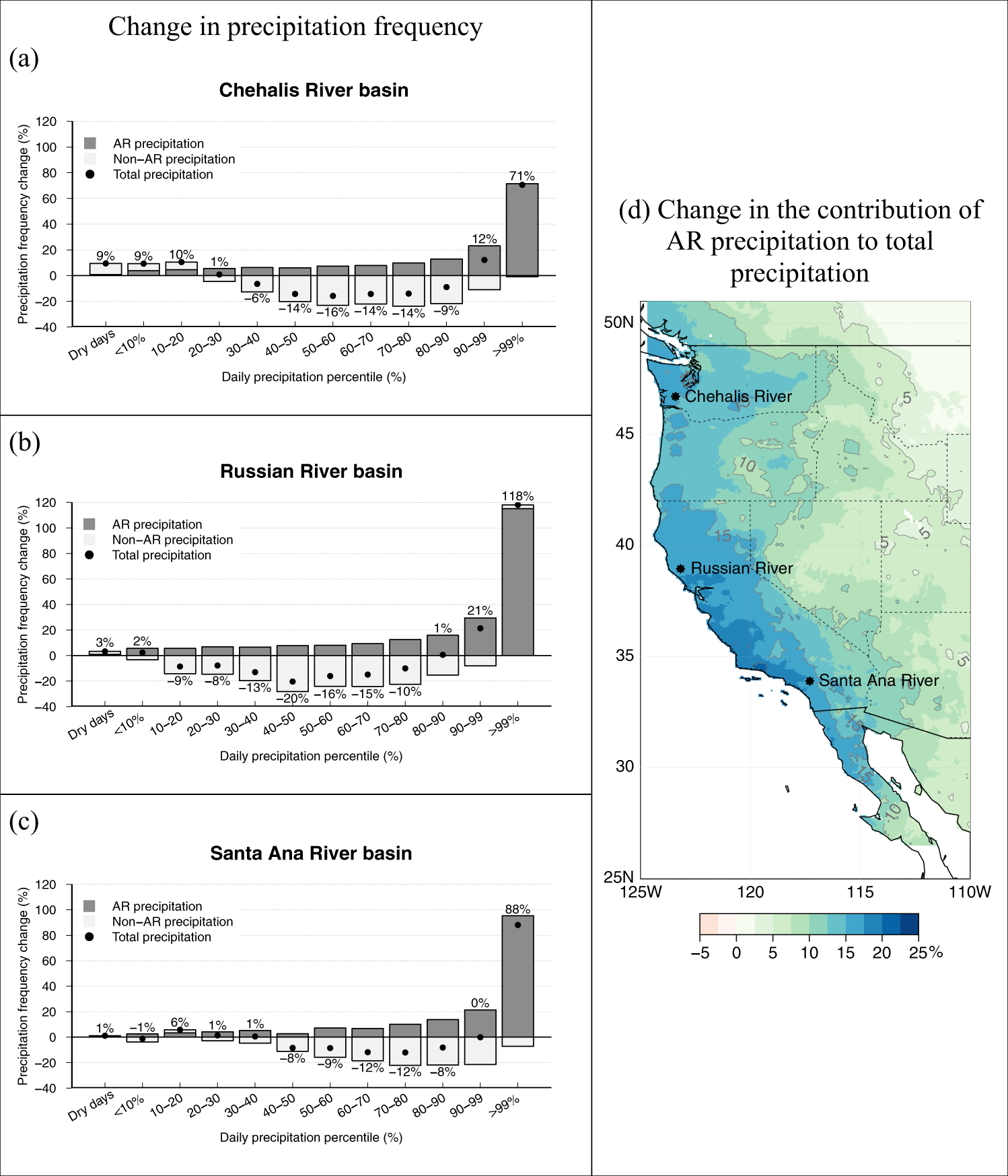

Figure 2
From: Precipitation regime change in Western North America: The role of Atmospheric Rivers
Future changes in daily precipitation frequency binned by percentile ranges of daily intensity (% of historical climatology). Results represent ensemble averages for the Real-5 LOCA-downscaled GCMs for the Chehalis, Russian and Santa Ana river basins (a–c, respectively). Changes in total precipitation are denoted by dots and associated values; AR-related precipitation (for each AR day and the following day) – dark grey bars; and non-AR precipitation – light grey bars. Panel (d) illustrates Real-5 ensemble average change in the contribution of AR-related precipitation to total precipitation (in % of historical contribution see Fig. S7d,f).
