Figure 4
From: Precipitation regime change in Western North America: The role of Atmospheric Rivers

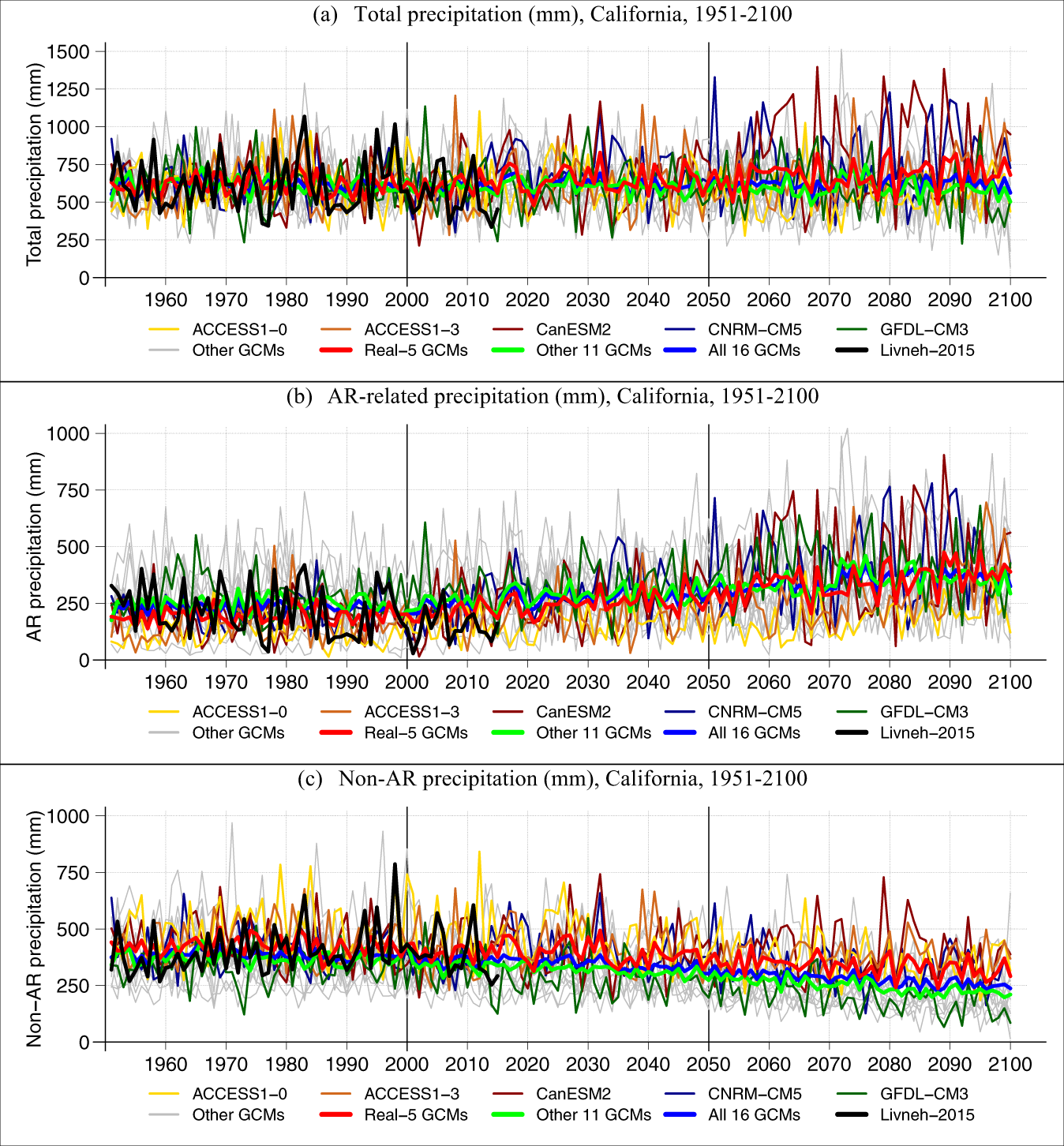

Annual total (a), AR-related (b) and non-AR related (c) LOCA-downscaled precipitation spatially averaged over California during historical (1951–2005, left) and projected (2007–2100, right) time periods. Results from the Real-5 GCMs are plotted in thin colored lines, while the Other GCMs are outlined in gray. Thick curves represent the ensemble averages of the Real-5 GCMs (red), the Other 11 GCMs (green) and the full ensemble of 16 GCMs (blue). Thick black curve delineates the annual total (a), AR-related (b) and non-AR (c) precipitation, which is based on observed precipitation data. Trends and their significance are quantified in Table S5.
