Figure 4 | Scientific Reports

Figure 4

From: Underestimated Risks of Infantile Infectious Disease from the Caregiver’s Typical Handling Practices of Infant Formula

Figure 4

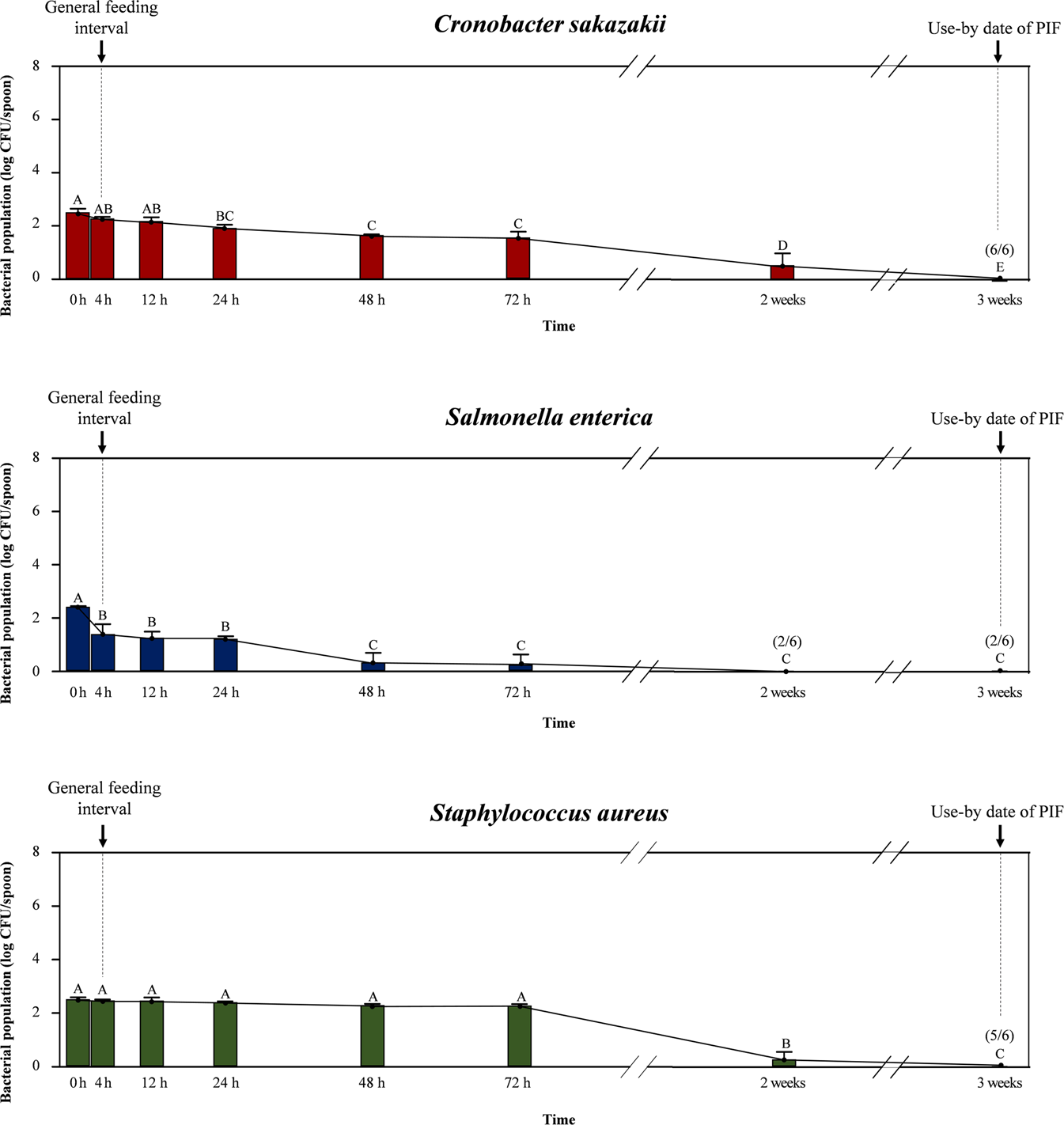

Survival of bacteria (log CFU/spoon) on surface of spoon contaminated from artificial skin with moderate bacterial load (3 log CFU/hand) during storage in touched with PIF. Data showed mean ± standard deviation (quantitative analysis; n = 6). Different capital alphabets (A–E) denoted on each data indicate significant differences of population levels between experimental time points within the same bacterial species (p < 0.05). The values in the parenthesis above the points indicate the results of enrichment tests as positive samples out of total trials (n = 6). The arrow bars (↓) indicate the general feeding interval (4 h) and use-by date of PIF suggested manufacturer (3 weeks).
