From: Highly Sensitive NH3 Wireless Sensor Based on Ag-RGO Composite Operated at Room-temperature

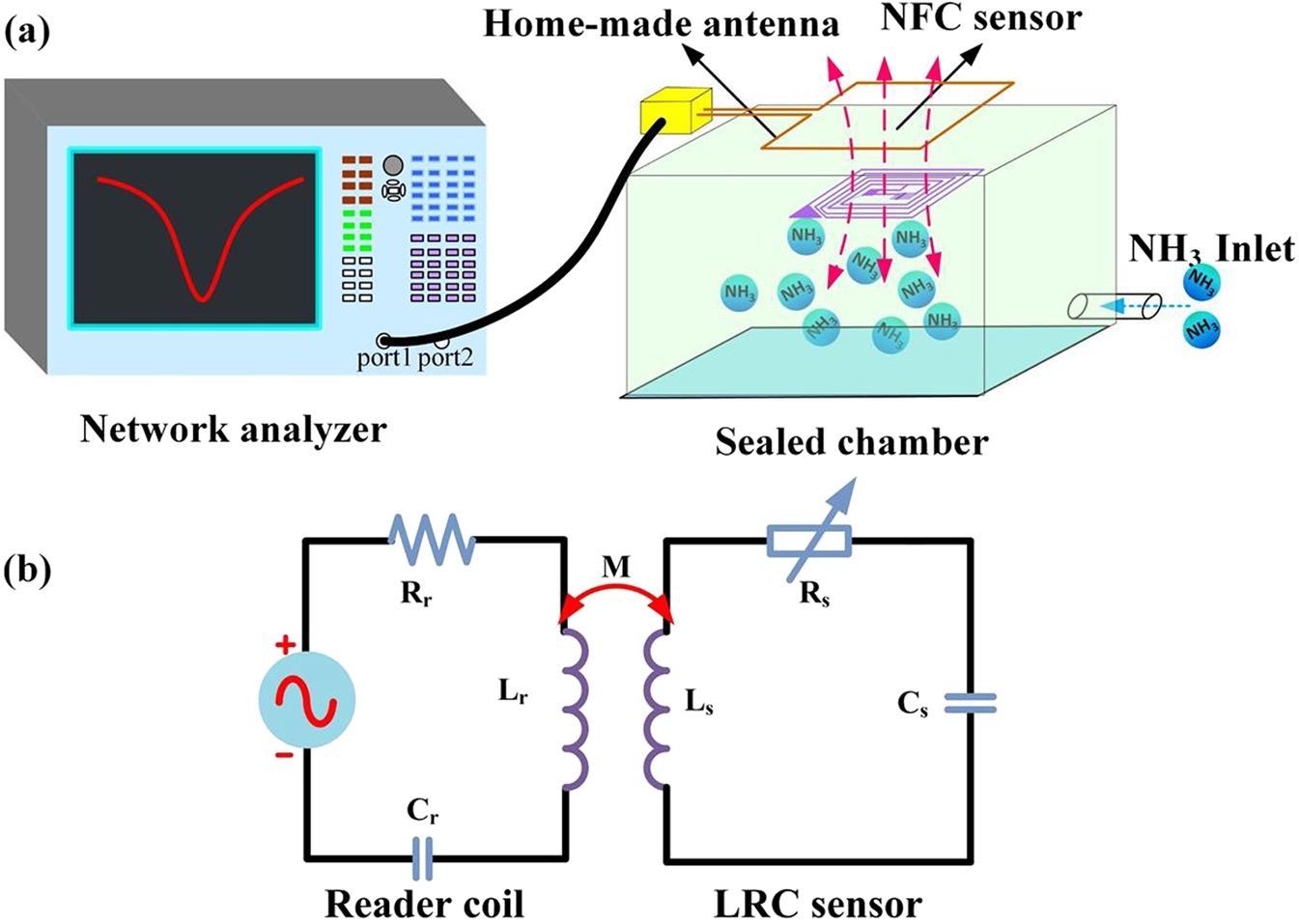

(a) Schematic of the test loop. (b) Equivalent circuit diagram of the test loop.
