Figure 2

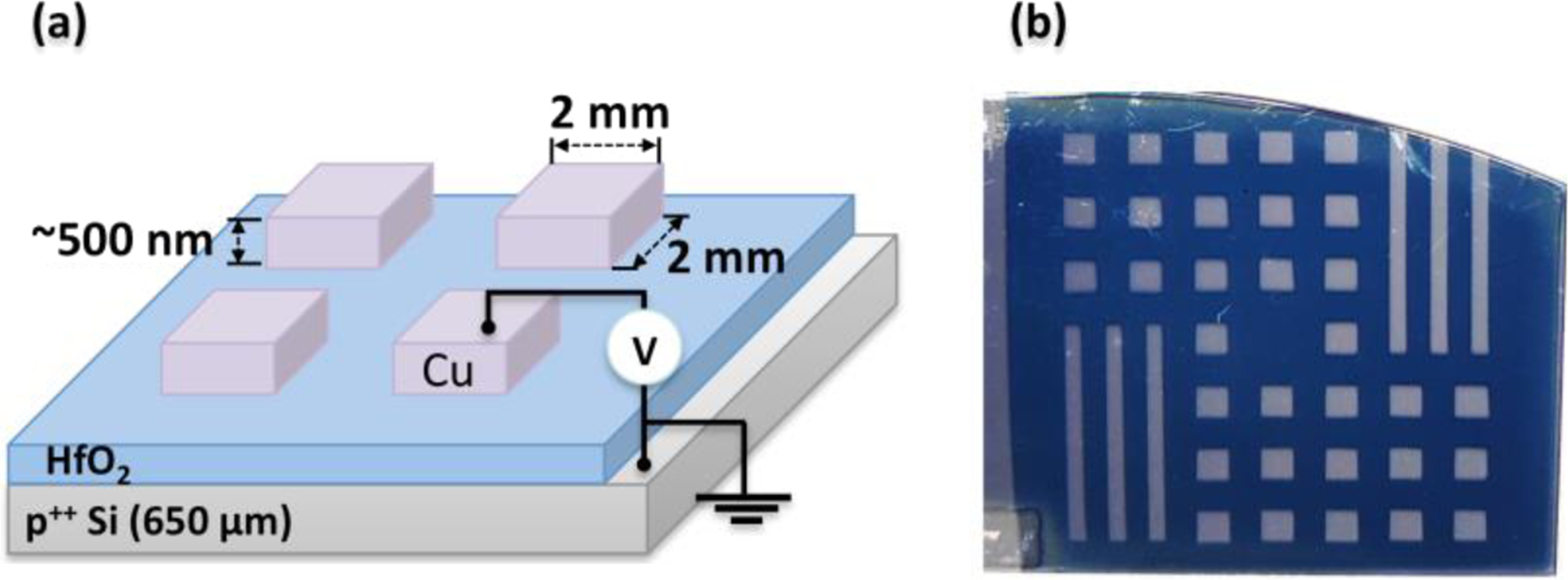

(a) Side view schematics of a sample, where each Cu TE square (2 mm × 2 mm) defines one memristor device and (b) top view image of one of the fabricated samples with many devices.
Figure 2 | Scientific Reports
(a) Side view schematics of a sample, where each Cu TE square (2 mm × 2 mm) defines one memristor device and (b) top view image of one of the fabricated samples with many devices.
