Figure 9
From: Metasurface Antennas: New Models, Applications and Realizations

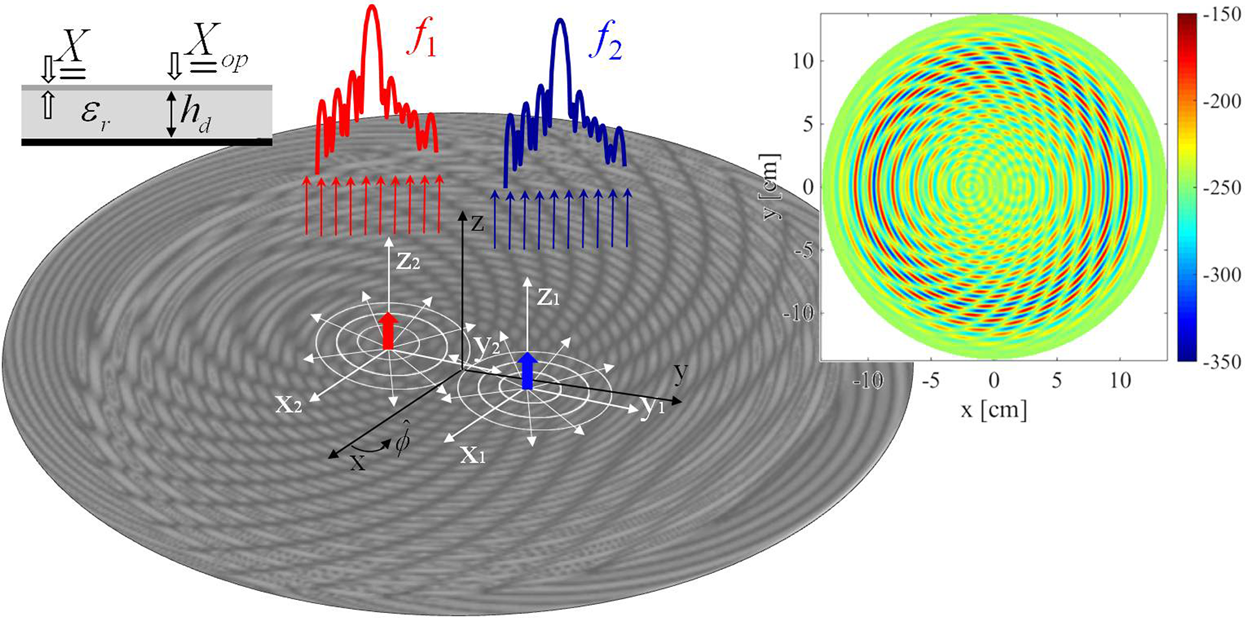

Layout and feeding positioning of the proposed dual band antenna. Position of the feeders are highlighted with the local coordinate systems; each feed is associated to a different frequency. The interference of the two modulation functions is shown in the inset on the upper right inset.
