Figure 2
From: Tubulin response to intense nanosecond-scale electric field in molecular dynamics simulation

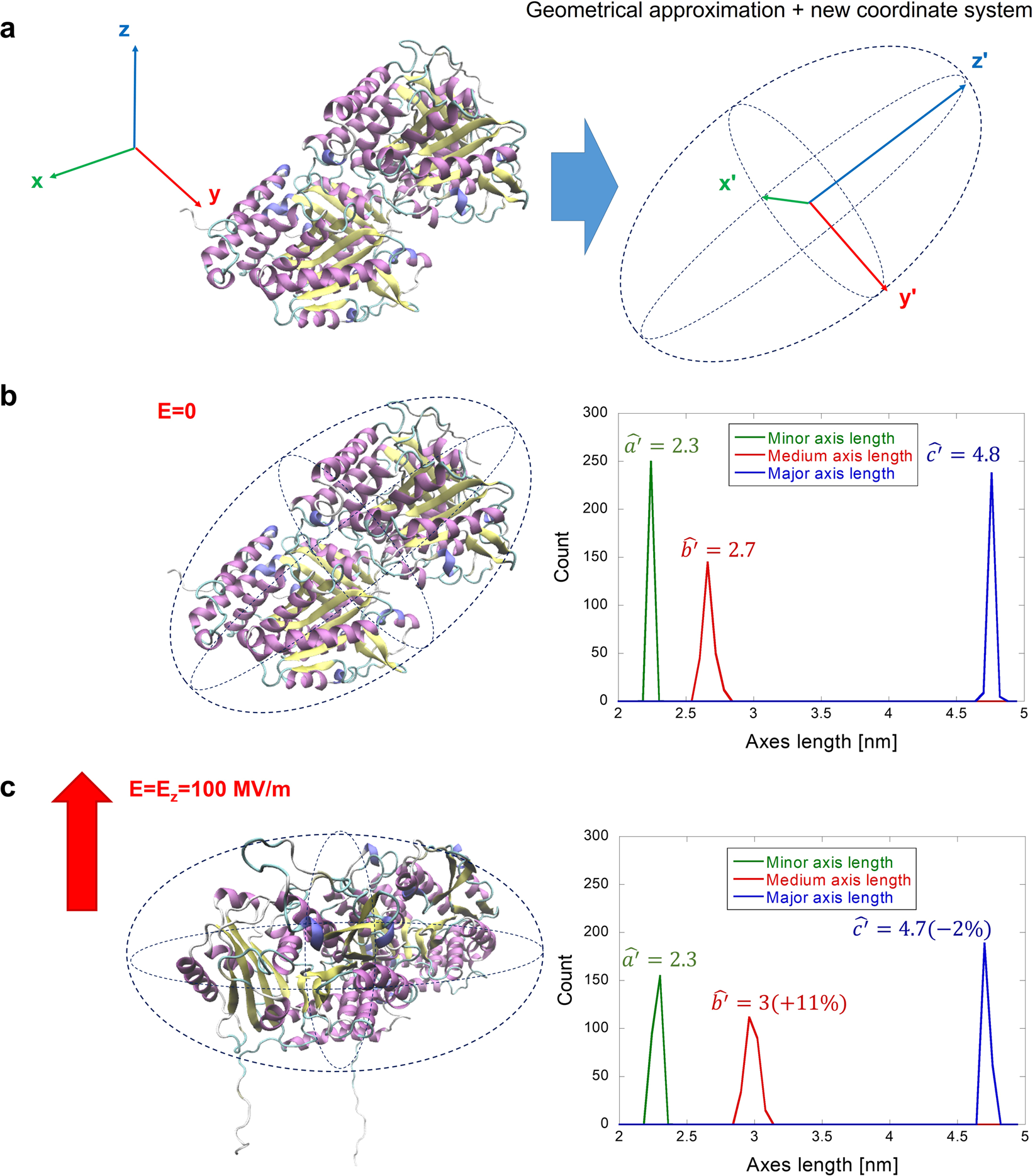

Electric field effects on tubulin geometry represented in the new internal coordinate system. (a) New coordinate system and dimensions of the tubulin approximated by an ellipsoid. (b) Tubulin shape when no electric field is applied. (c) Quantification of the electric field effects on both the orientation of the tubulin dimer and its overall shape. The distributions on the right are from 250 frames from the last 5 ns of the MD simulation (sampling rate 20 ps).
