Figure 7
From: Tubulin response to intense nanosecond-scale electric field in molecular dynamics simulation

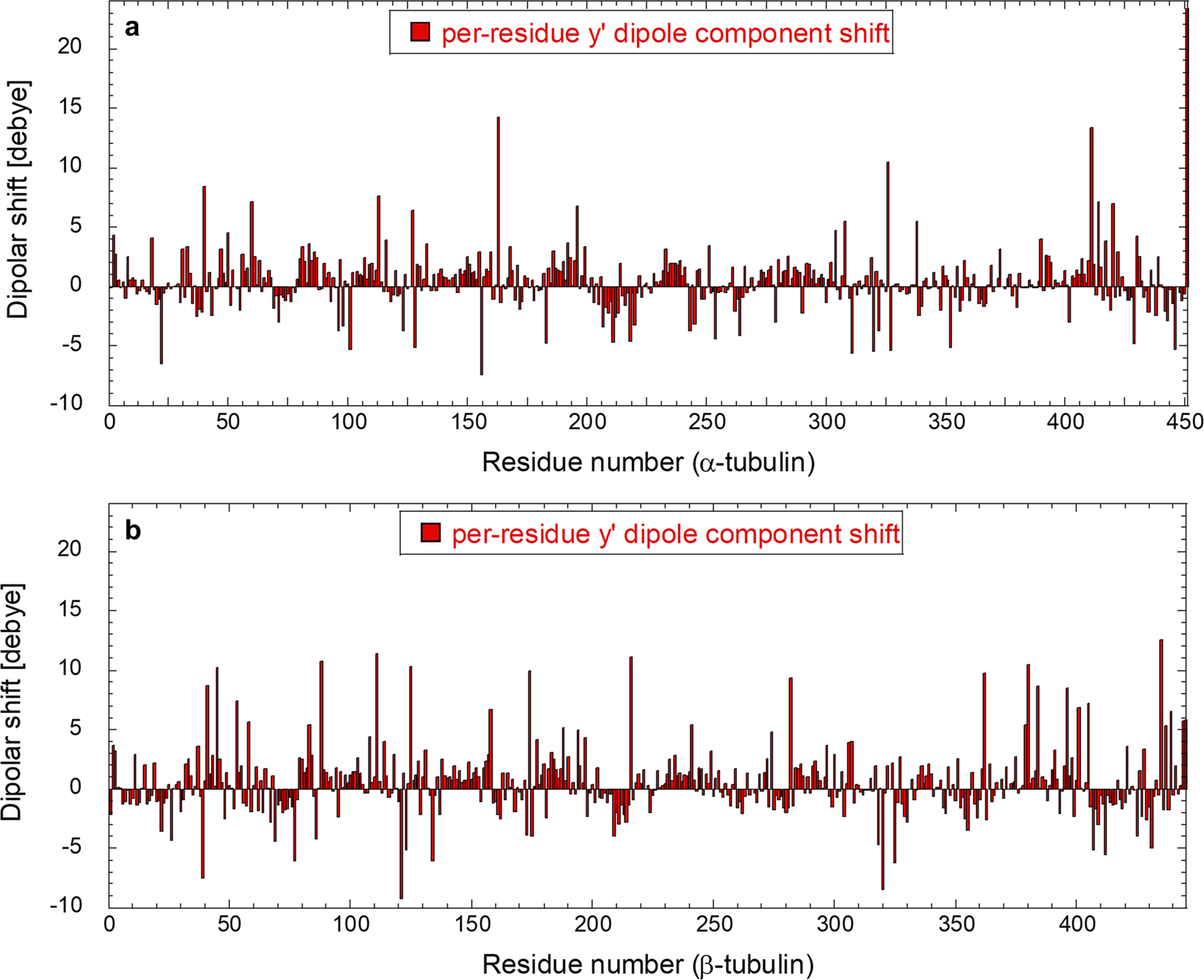

Dipolar shift of each tubulin residue (α-tubulin in (a), β-tubulin in (b)) in the presence of the 100 MV/m electric field strength with respect to the unexposed case. Data refer to the dipole component along the y′ internal coordinate (see SI 2 for the complete picture of dipole component shifts).
