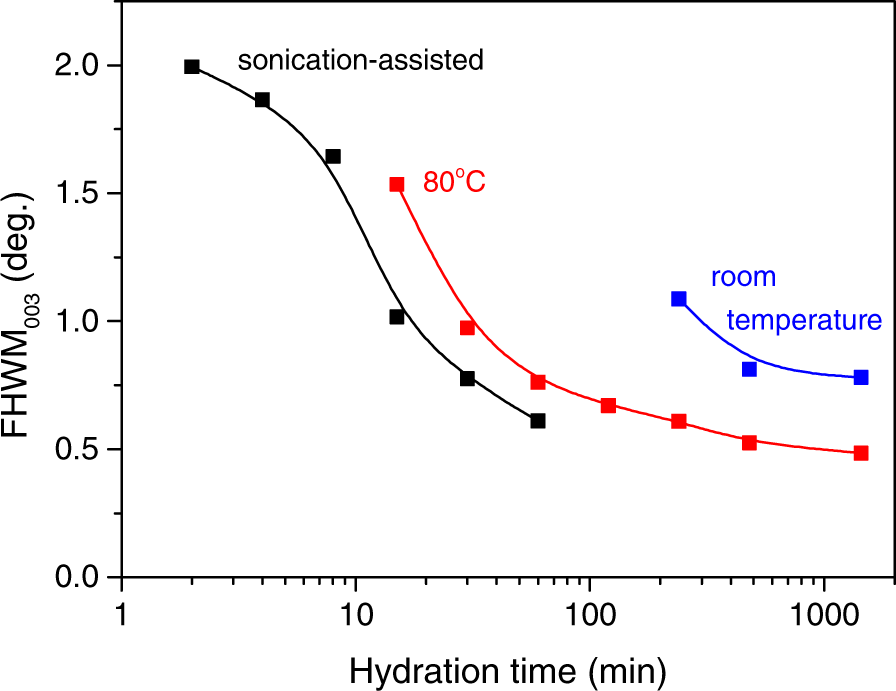

Figure 2
The full width at half maximum (FWHM) values of the 003 basal diffraction peaks of LDH phase obtained by hydration of Mg2Al MMO either at room temperature or at 80 °C or under applied high-power ultrasound as a function of hydration time. Notice the logarithmic time scale.
