Figure 7
From: Molecular complexity of the major urinary protein system of the Norway rat, Rattus norvegicus

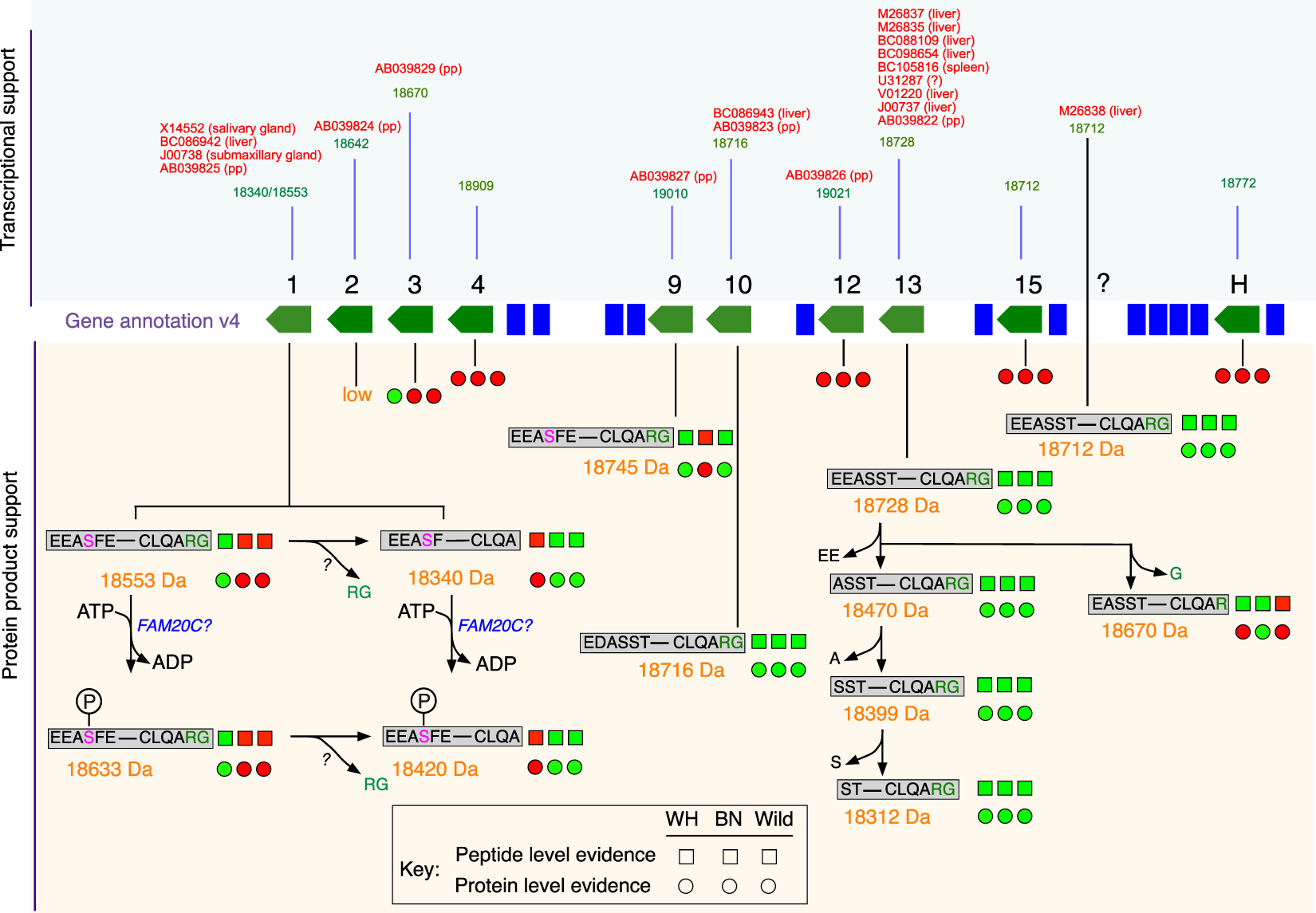

Summary of phenotypic profiling of rat urinary MUPs. The phenotypic analysis of urinary MUPs is mapped to the mup region of rat genome version 4. Above the gene annotation we include transcriptional evidence from other studies, highlighting tissue of origin. Below the gene annotation, we summarise the findings in this paper. For each protein, we report the evidence for a mature gene product by intact mass analysis (adjacent to the predicted mass in orange) and from bottom up peptide analysis (adjacent to the sequence data) for each of the three groups of animals tested: Wistar Han (WH), Brown Norway (BN) and wild-caught (Wild) individuals. A green circle defines confident protein-level evidence, a red circle denotes the absence of evidence for this particular gene product. A green square defines confident peptide-level evidence, a red square denotes the absence of peptide evidence for this particular gene product.
