Figure 5
From: Building carbon structures inside hollow carbon spheres

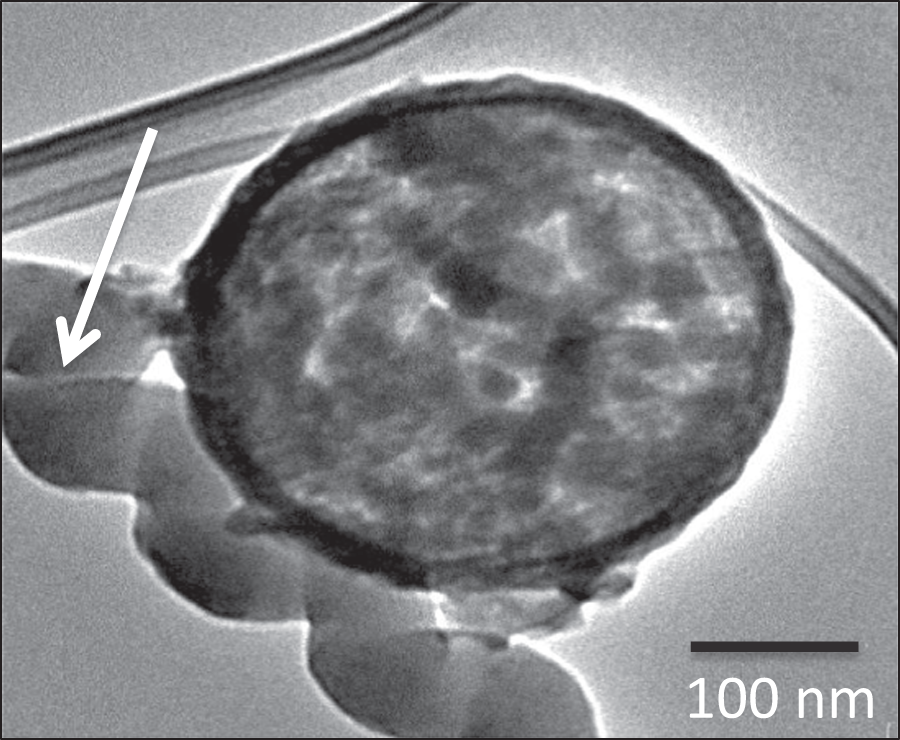

HCS completely filled with CNFs. (Note the large linear carbon fibre, shown by an arrow, formed by a Cu particle outside the HCS (dHCS = ca. 300 nm; dcoil outside the CNF = 50 nm; growth conditions: T = 300 °C; 1% Cu loading).
