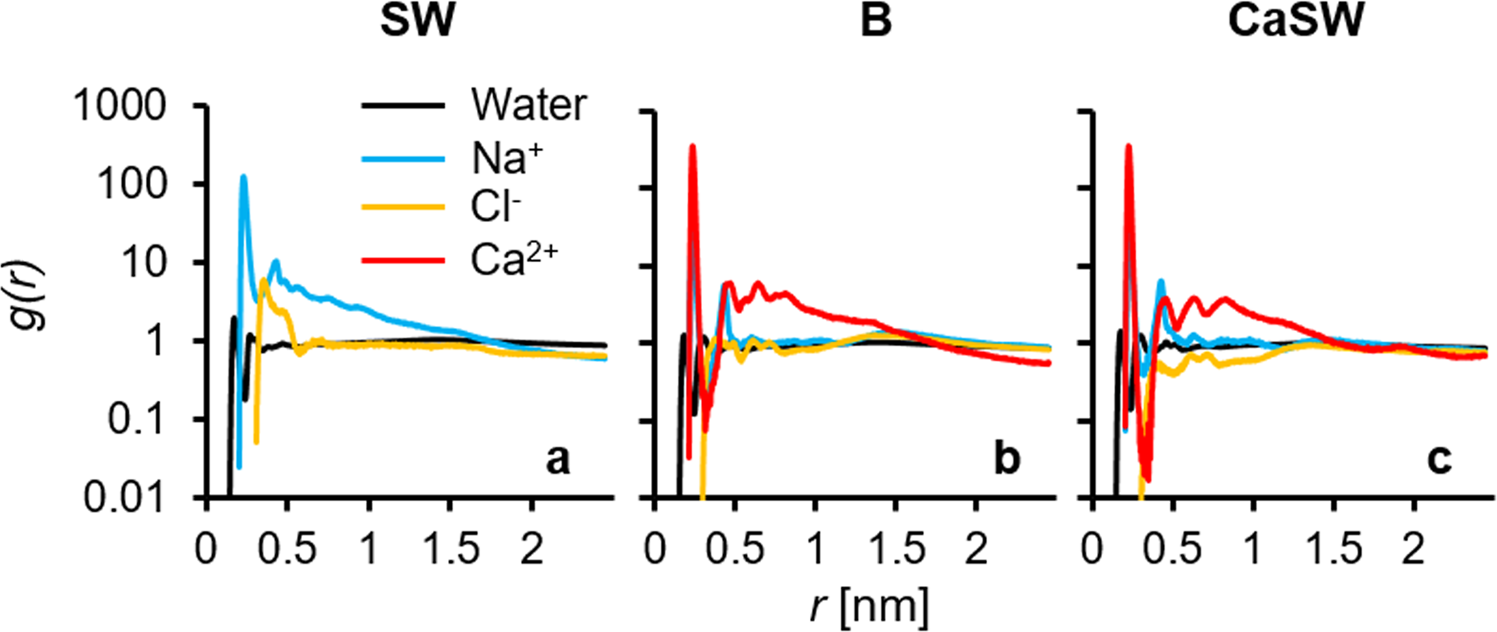

Figure 4

Radial distribution functions g(r) for the carboxylate groups with different ions or with water molecules in different reservoir fluids, confirming the complexation of the carboxylate groups by sodium ions in seawater (SW) and by calcium ions in brine (B) and calcium-doped seawater (CaSW).
