Figure 5

From: Identification of novel breakpoints for locus- and region-specific translocations in 293 cells by molecular cytogenetics before and after irradiation

Figure 5

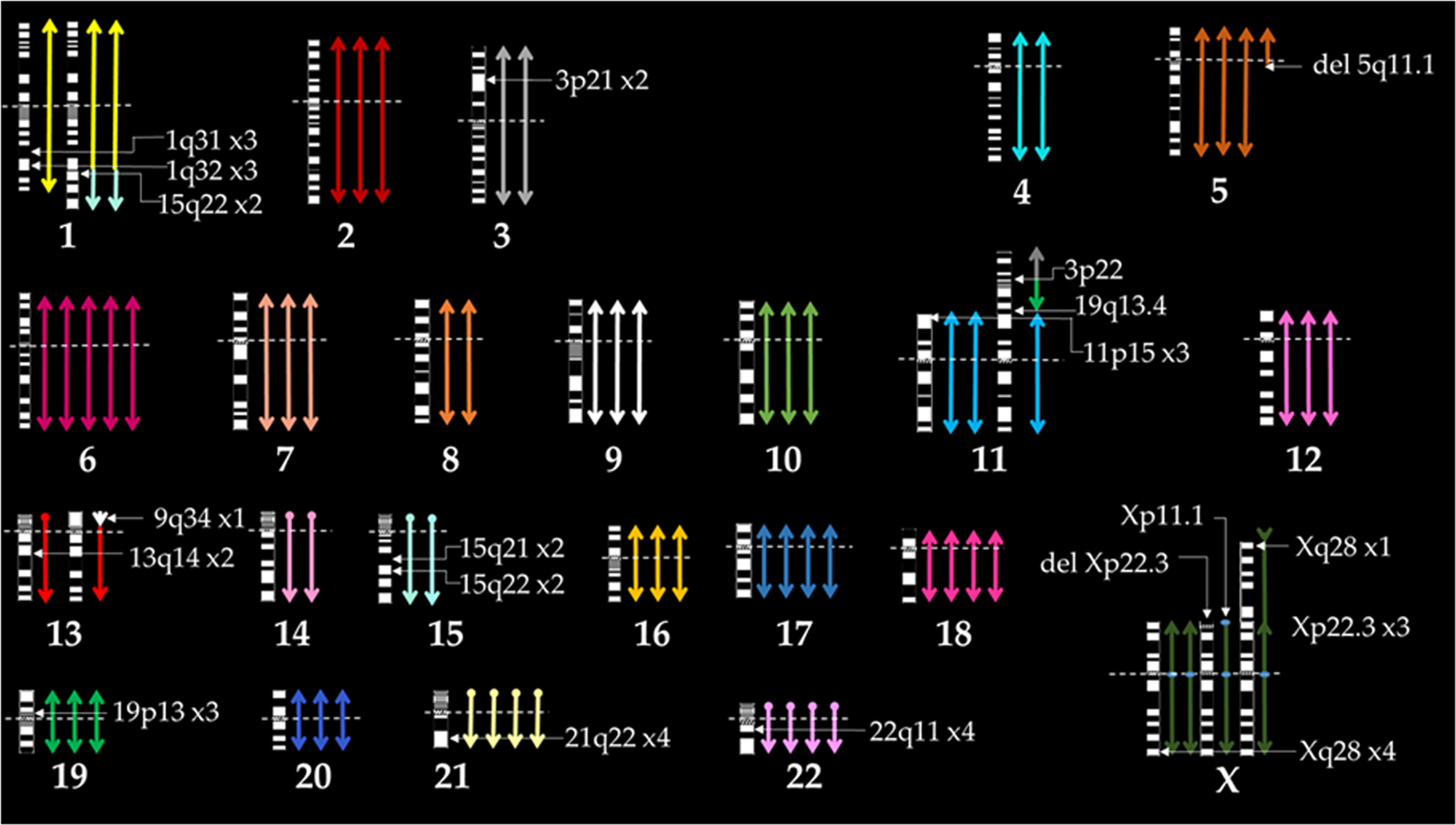

Karyogram of 293 cells showing copy number of individual chromosome, centromere location (as indicated by horizontal dashed line), the break points (as indicated by white arrows), and inter chromosomal rearrangements (by different color junctions) as detected by G-banding, SKY analysis, and locus- and region-specific FISH hybridization.
