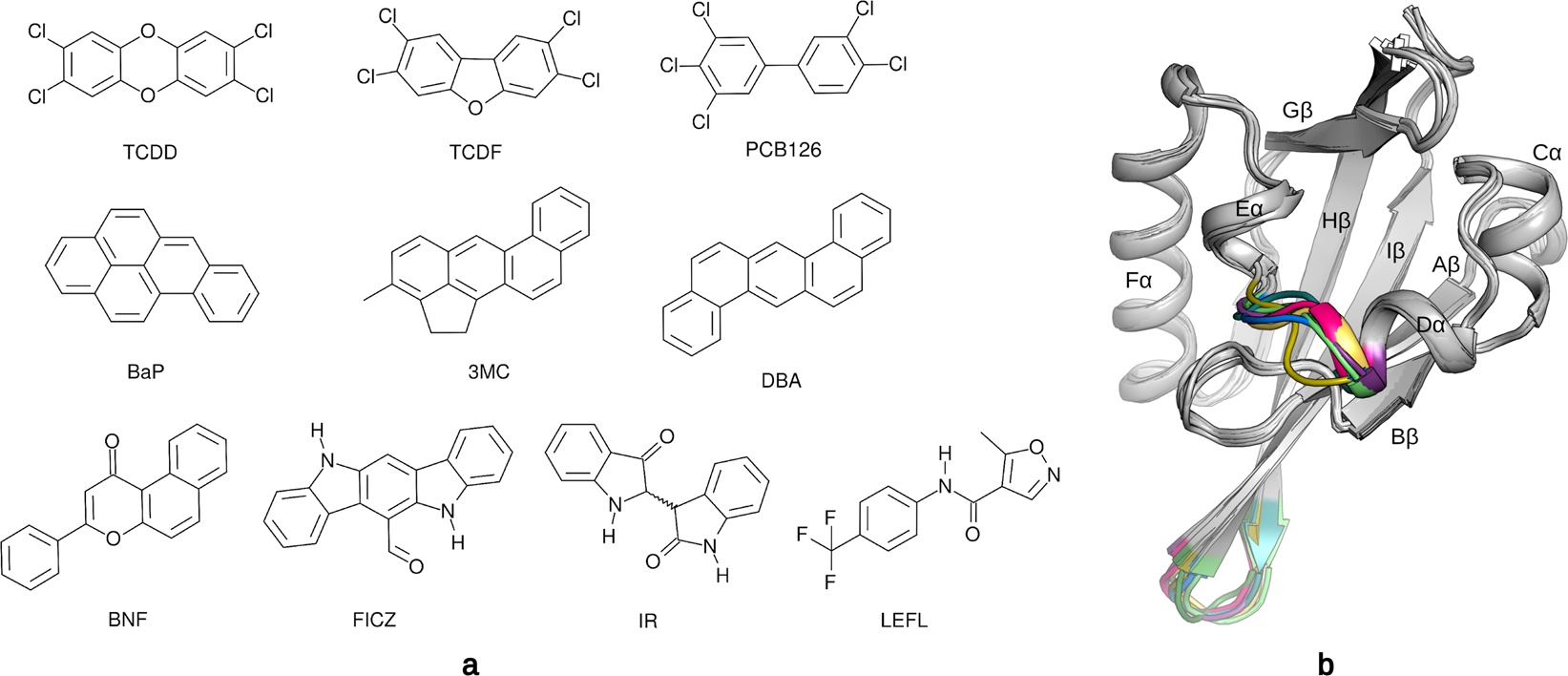

2D representation of the set of ligands analyzed in this study and the homology models of the mouse AhR (mAhR) PAS-B domain developed here. (a) Structures of AhR ligands used in this study. (b) Cartoon representation of all the mAhR PAS-B models superimposed. The region refined by loop modeling is colored according to the model. Secondary structure elements are labeled according to the PAS domain nomenclature73.
