Figure 3
From: Differential binding affinity of tau repeat region R2 with neuronal-specific β-tubulin isotypes

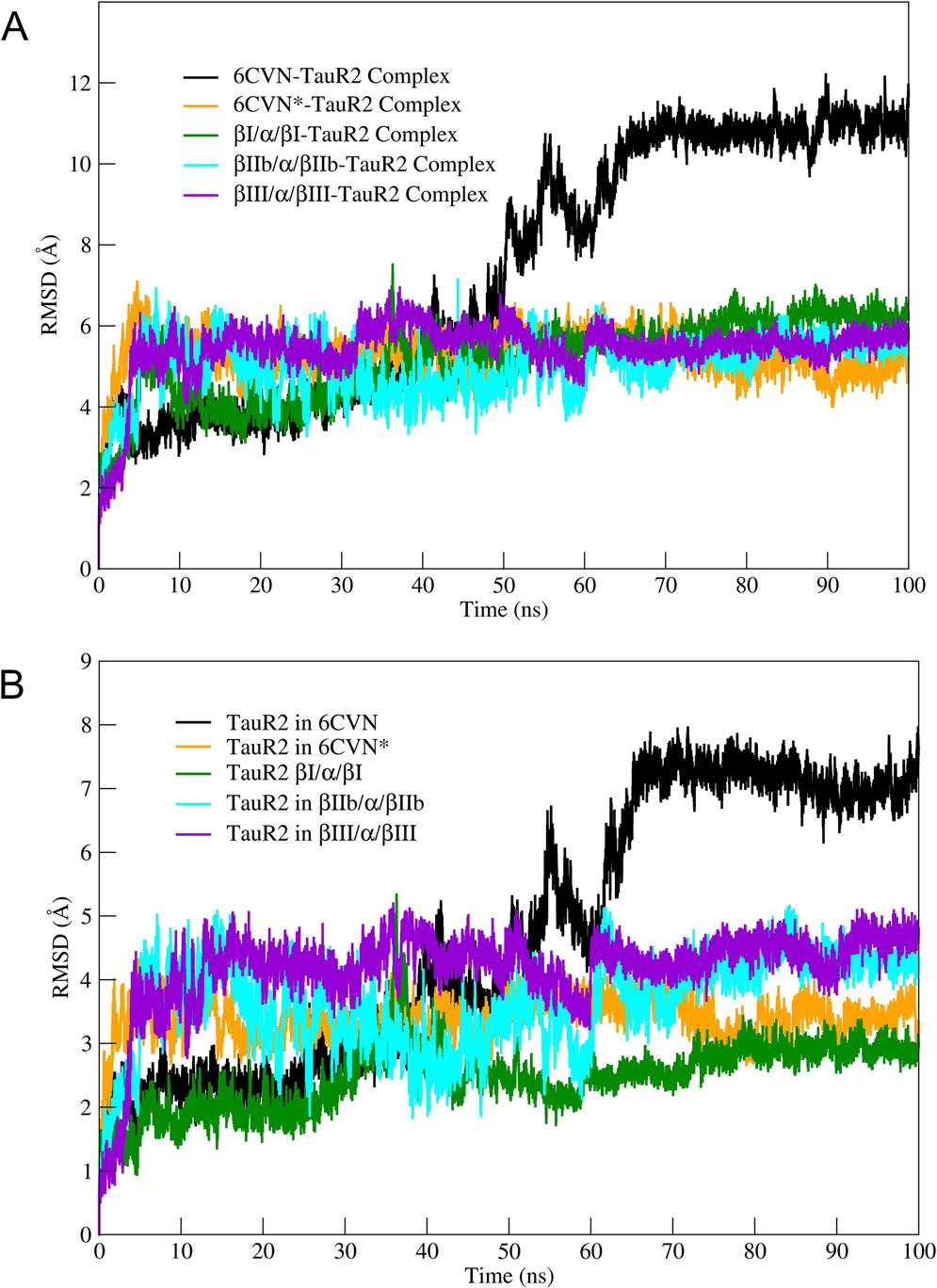

Stability of the tubulin-TauR2 complex and TauR2. (A) The Root mean square deviation values (RMSD) for tubulin-tauR2 complexes. RMSD values for 6CVN, 6CVN*, βI/α/βI, βIIb/α/βIIb and βIII/α/βIII have been plotted in black, orange, green, cyan and violet respectively. (B) The Root mean square deviation values for TauR2 shown using same color Scheme as in (A).
