Figure 4
From: Differential binding affinity of tau repeat region R2 with neuronal-specific β-tubulin isotypes

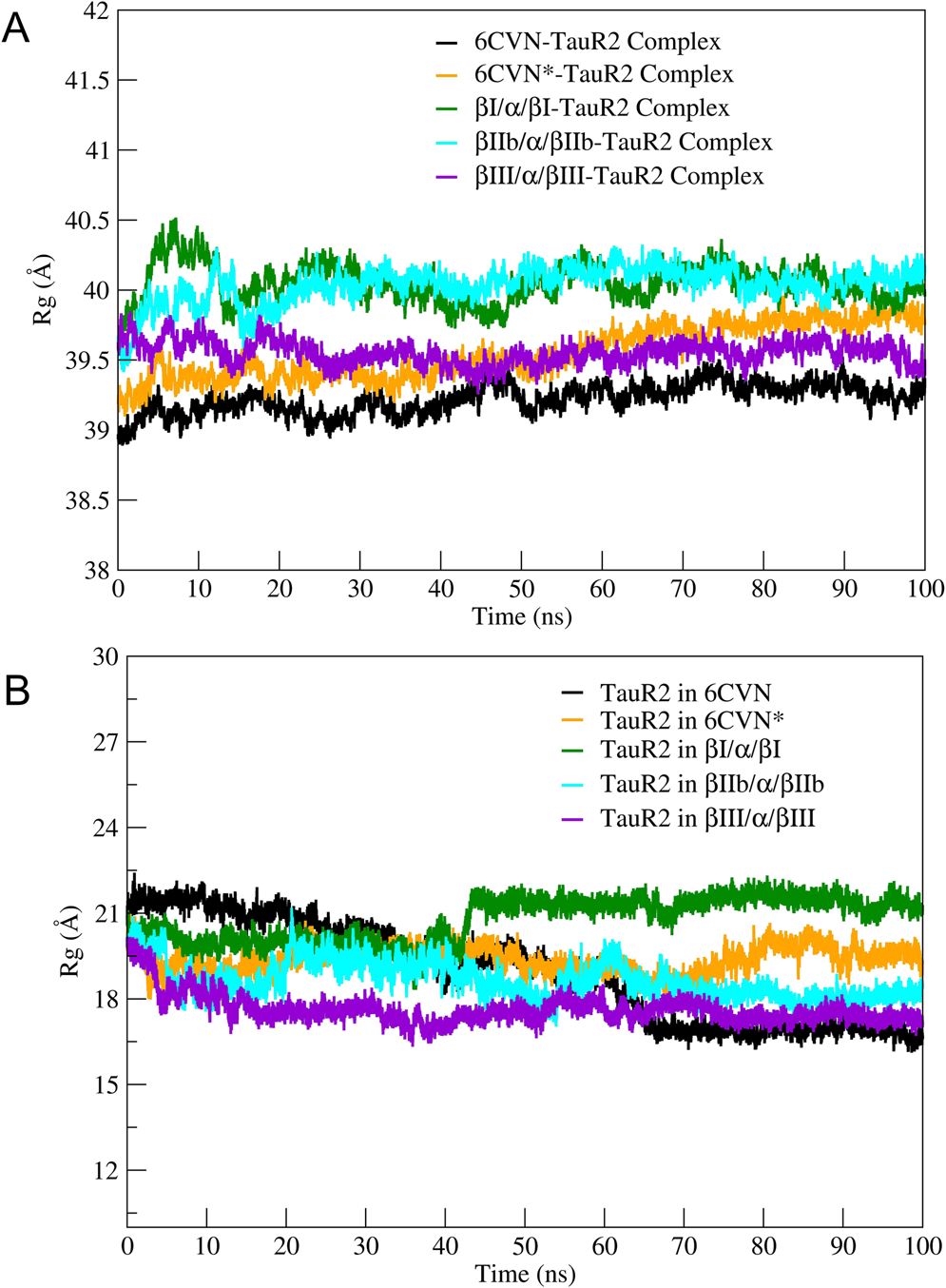

Radius of Gyration (Rg) of different tubulin-TauR2 complexes and TauR2. (A) Rg of 6CVN-TauR2 (black), 6CVN*-TauR2 (orange), βI/α/βI-TauR2 (green), βIIb/α/βIIb-TauR2 (cyan), βIII/α/βIII-TauR2 (violet) (B) Rg for TauR2 in different tubulin-TauR2 complexes. Color scheme same as Fig. 3.
