Figure 5
From: Differential binding affinity of tau repeat region R2 with neuronal-specific β-tubulin isotypes

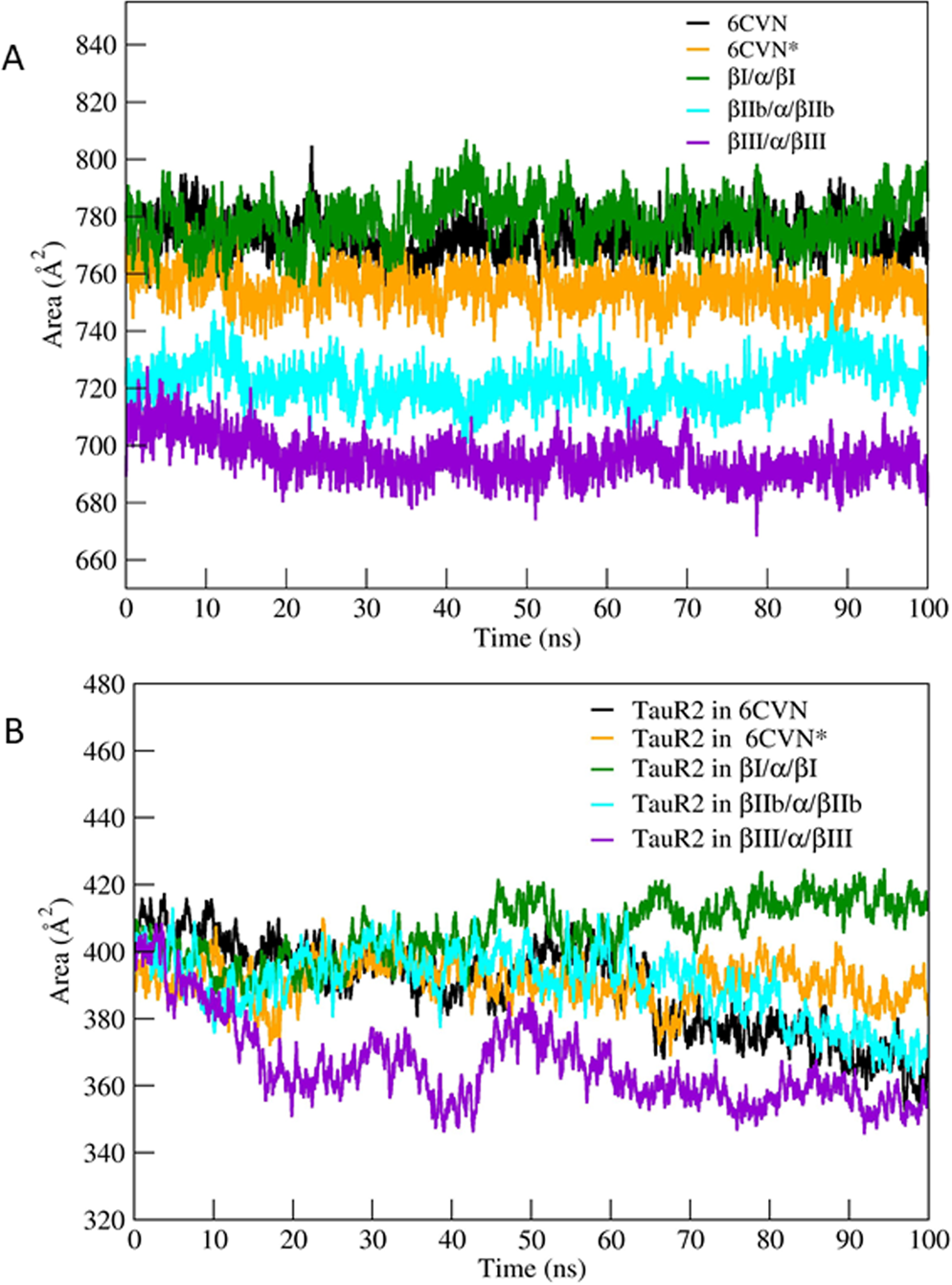

Contact surface area (CSA) and solvent accessible surface area (SASA) of different β/α/β-tubulin subunits andTauR2. (A) CSA for different 6CVN-TauR2 (black), 6CVN*-TauR2 (orange), βI/α/βI-TauR2 (green), βIIb/α/βIIb-TauR2 (cyan), βIII/α/βIII-TauR2 (violet) complexes. (B) hydrophobic SASA for tubulin isotype bound TauR2. Color scheme same as Fig. 3.
