Figure 7
From: Differential binding affinity of tau repeat region R2 with neuronal-specific β-tubulin isotypes

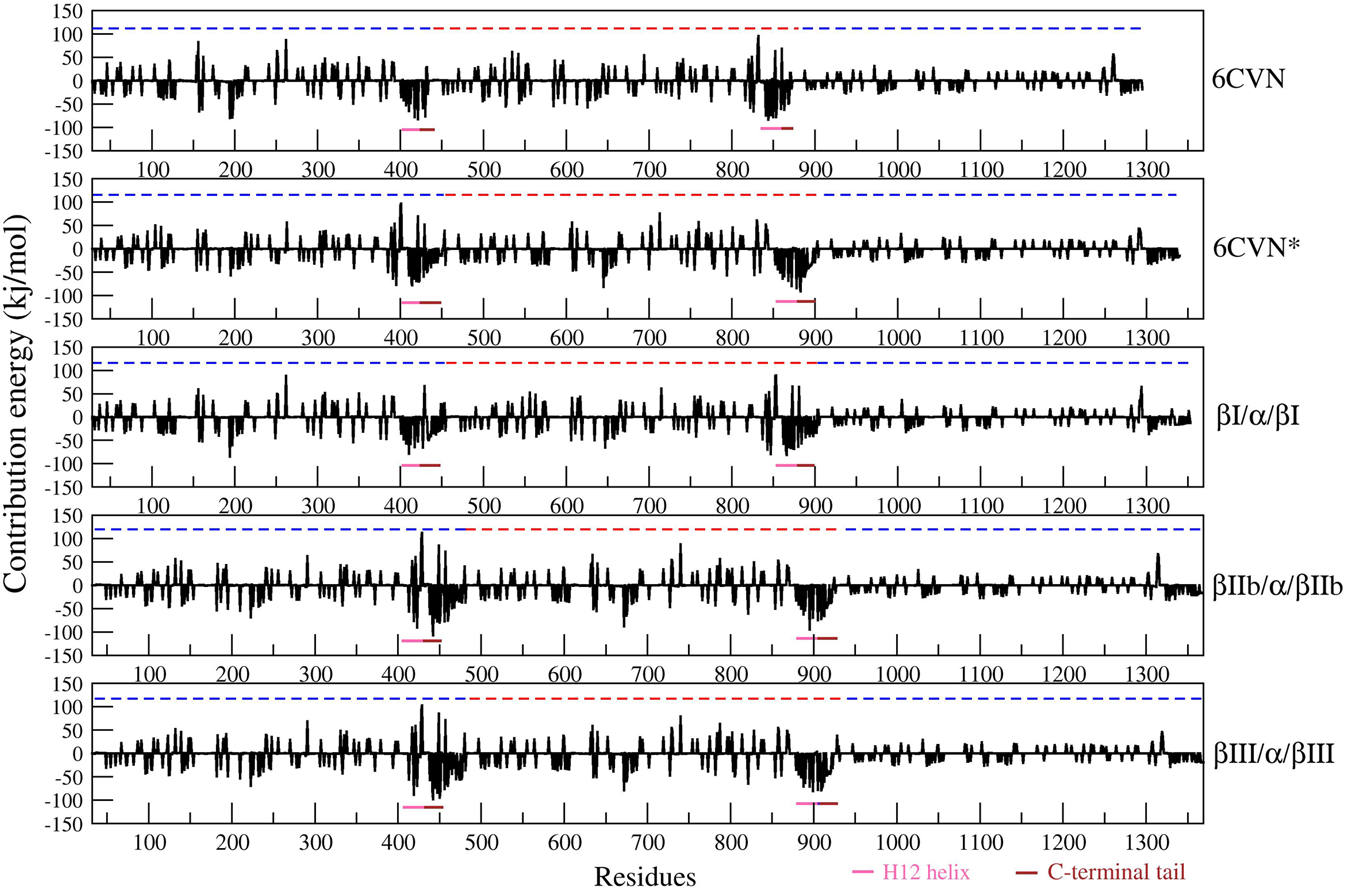

Residue decomposition energy of different tau-tubulin complexes. The H12 and C-terminal tail regions show highest energy contribution for the binding of TauR2 in 6CVN*, βI/α/βI, βIIb/α/βIIb and βIII/α/βIII tubulin subunits except in case of 6CVN which does not have C-terminal tail region.
