Figure 11
From: A high-efficiency L-band coaxial three-period relativistic Cherenkov oscillator

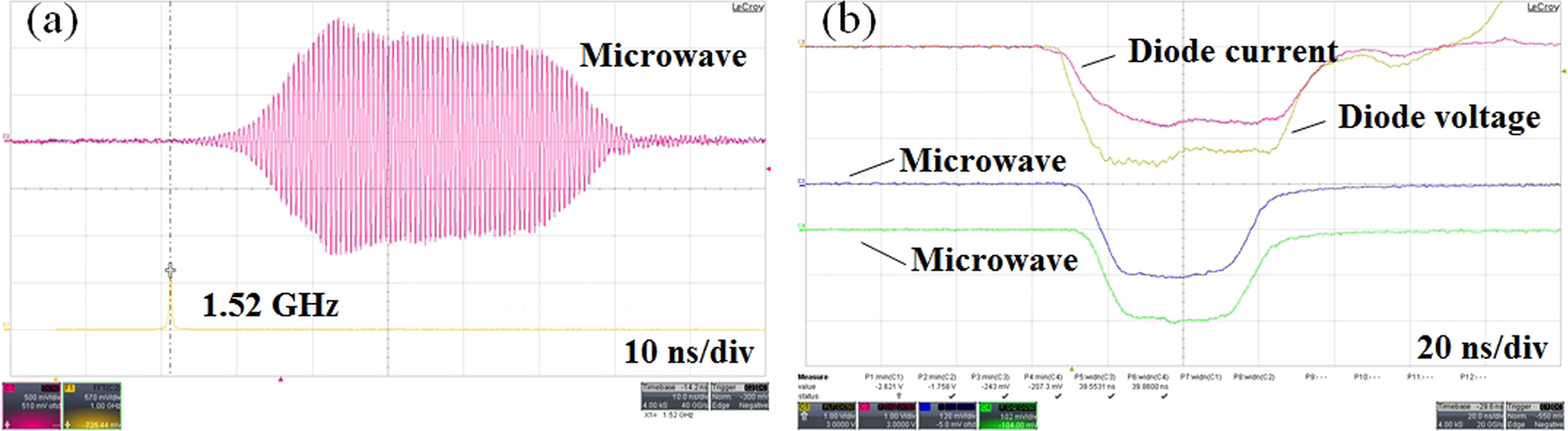

Typical measured waveforms of the (a) radiated microwave and its spectrum and (b) diode voltage, current and microwave.
Figure 11 | Scientific Reports
From: A high-efficiency L-band coaxial three-period relativistic Cherenkov oscillator
Typical measured waveforms of the (a) radiated microwave and its spectrum and (b) diode voltage, current and microwave.
