From: Structural basis for broad substrate specificity of UDP-glucose 4-epimerase in the human milk oligosaccharide catabolic pathway of Bifidobacterium longum

Figure 2

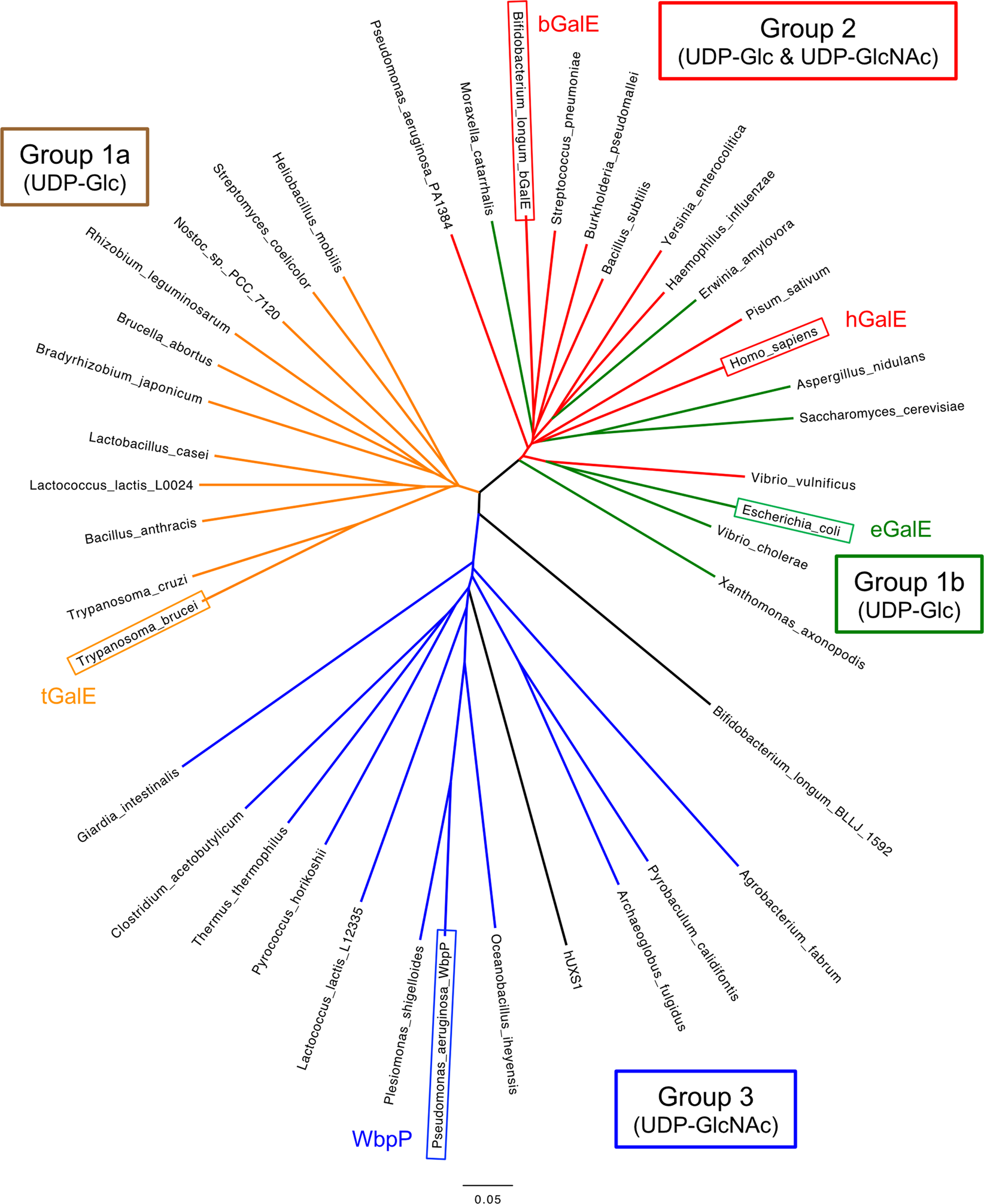

Phylogenetic tree of GalEs and UDP-xylose synthase. Source organisms of biochemically and structurally characterized GalE enzymes and those of uncharacterized protein sequences are shown. The group classification and substrate specificity prediction are performed according to the method described in Ishiyama et al.32. Human UDP-xylose synthase 1 (hUXS1) is also shown. Bar, 5% sequence divergence.
