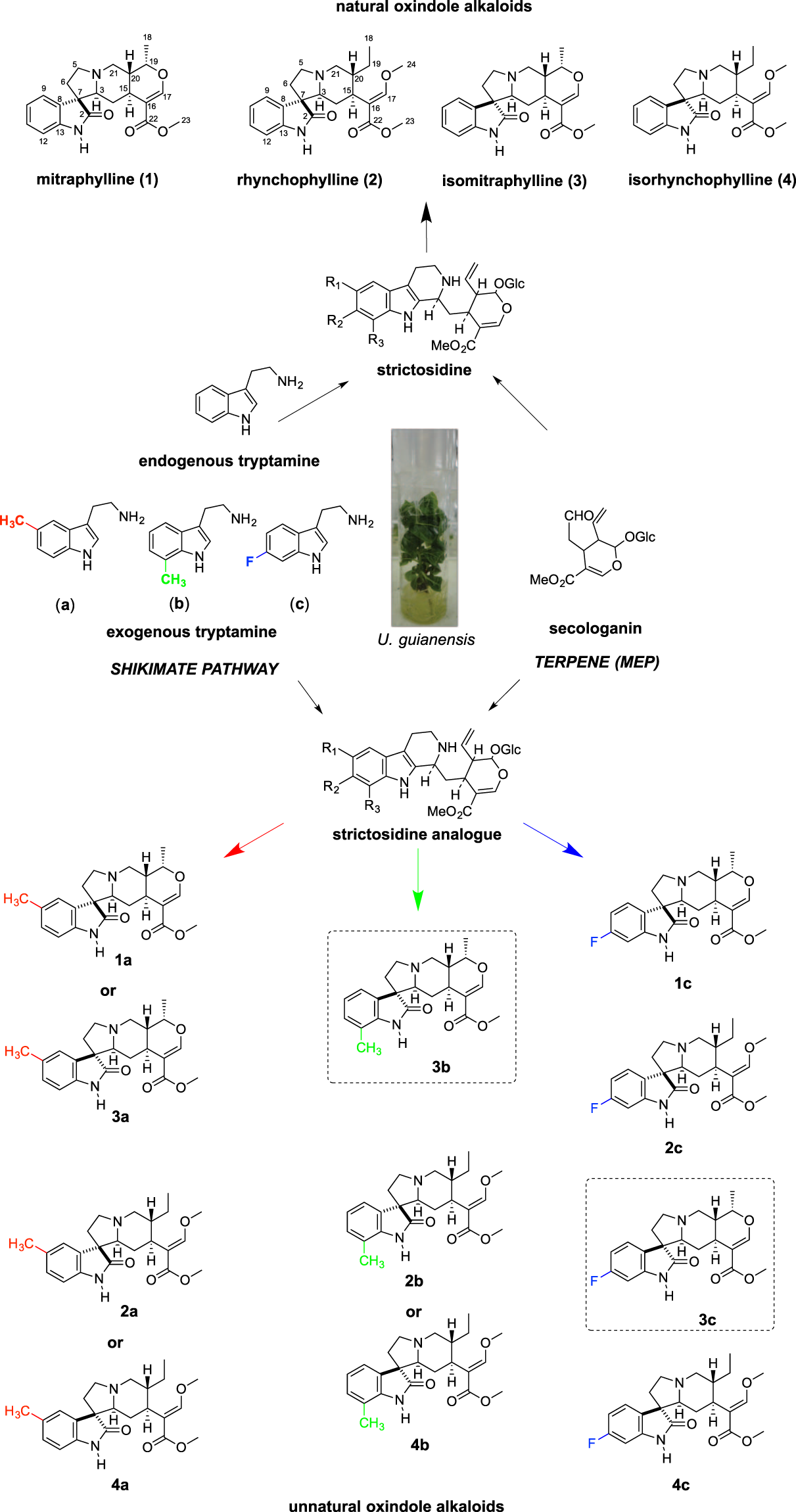

Figure 2
From: Unnatural spirocyclic oxindole alkaloids biosynthesis in Uncaria guianensis
Natural and unnatural oxindole alkaloids biosynthesized by U. guianensis plantlets. Square (dashed lines) represent complete characterization of new-to-nature oxindole alkaloids.
