Figure 4
From: Root hairs enhance Arabidopsis seedling survival upon soil disruption

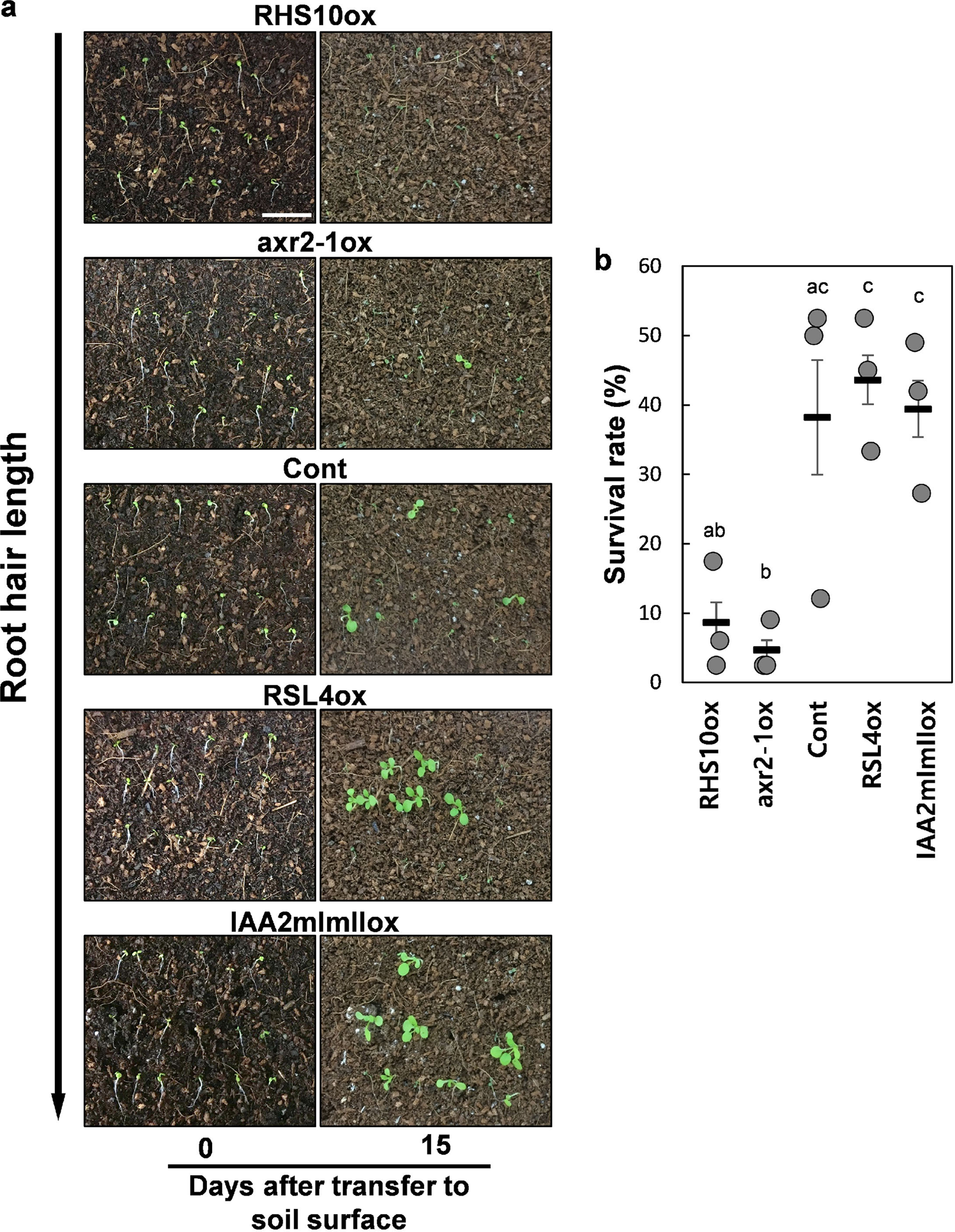

The survival test of naked seedlings on the soil surface. (a) Seedling images of control (Cont) and transgenic lines overexpressing RHS10 (RHS10ox), axr2-1 (axr2-1ox), RSL4 (RSL4ox), and IAA2mImI (IAA2mImIIox) after laying naked seedlings on the soil surface. Bar is 1 cm for all. (b) Survival rates of seedlings 15 days after laying on the soil surface. Data represent mean ± s.e.m. (n = 3 independent experiments). Statistically significant differences are denoted with different letters (one-way ANOVA with Tukey’s unequal N-HSD post hoc test, P < 0.05).
