Figure 4
From: Protein Complex Identification and quantitative complexome by CN-PAGE

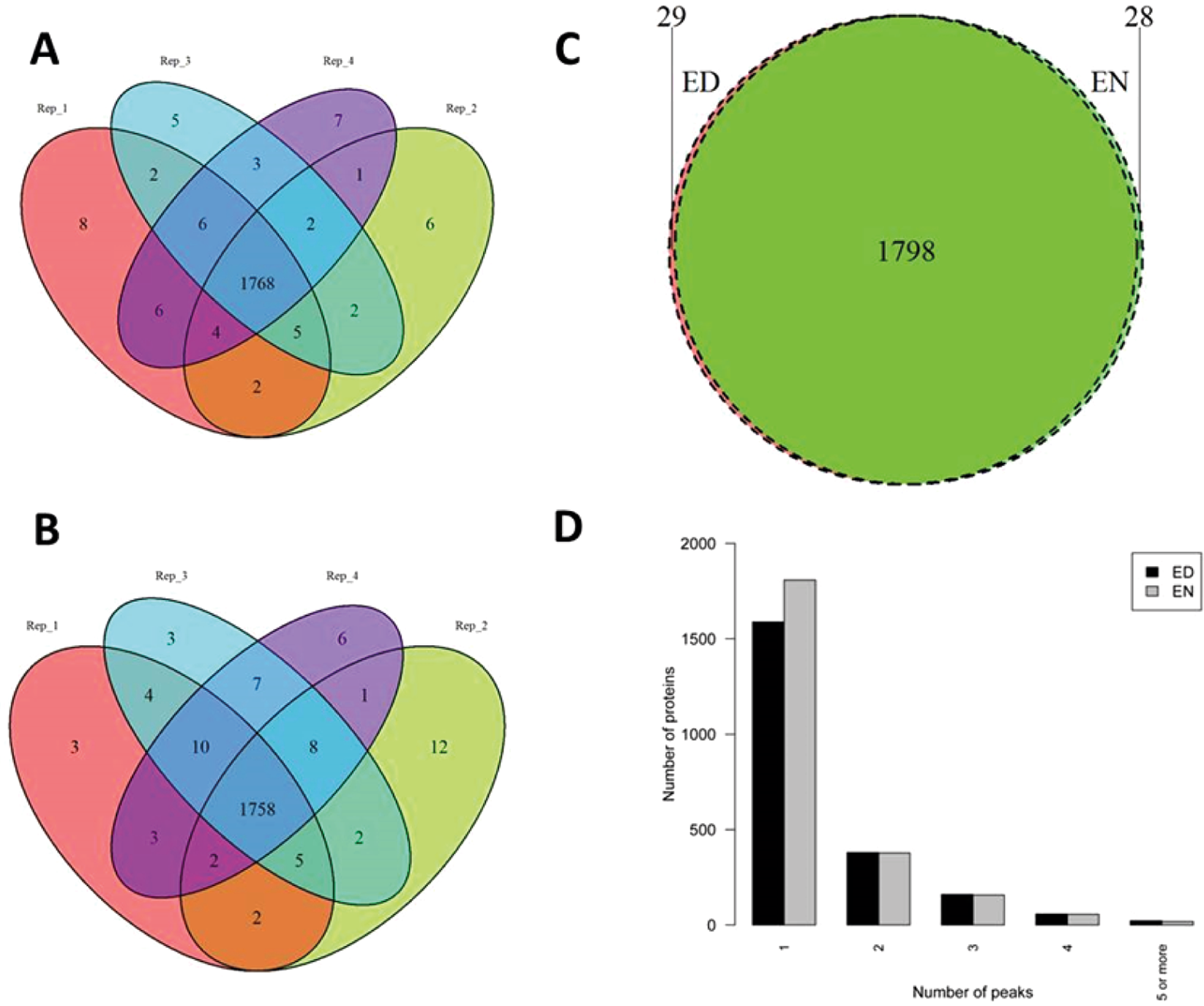

Evaluation of protein complex identification between the ED and EN. The overlap between protein complexes identified in each of the biological replicates at the (A) ED and (B) EN were calculated and visualised as Venn diagrams. (C) A Venn diagram was also produced to show the overlap between the total number of protein in complexes identified at the ED and the EN. (D) Proteins that participate in complex formation should have at least one peak in addition to their monomeric peak. To illustrate the likelihood of complex formation, the number of peaks produced by each protein was visualised as a barplot.
