Figure 2
From: Inducers of settlement and metamorphosis of the shrimp Hippolyte inermis Leach in Posidonia oceanica

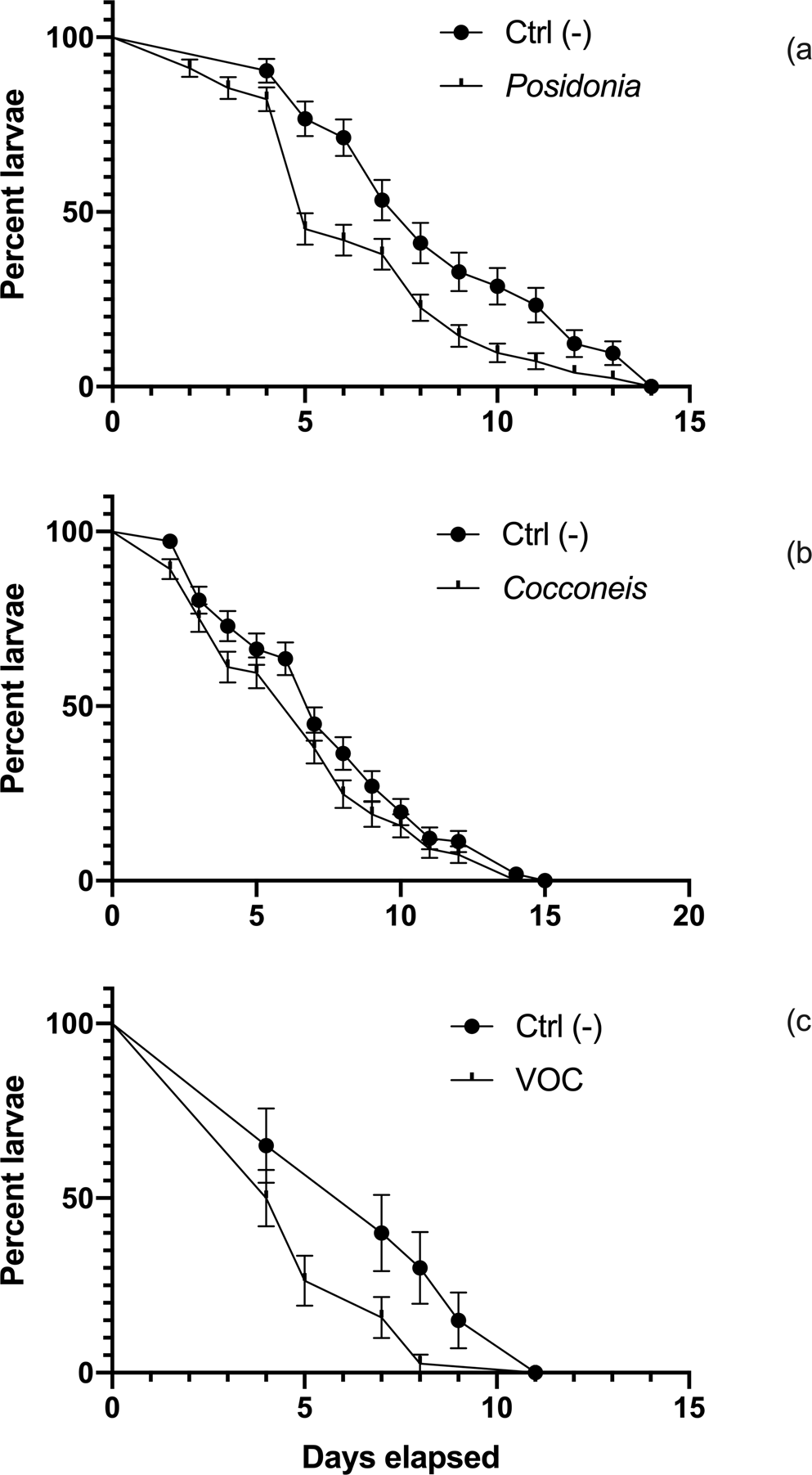

Percentages of larvae still in a planktonic phase in replicates of three treatments and their paired negative controls, during the first 15 days of test, plotted according to the Kaplan-Meier model. (a) Percentage of larvae in Posidonia treatment; (b) Percentage of larvae in Cocconeis treatment; (c) Percentage of larvae in VOC treatment. Vertical bars indicate standard deviations among 5 replicates.
