From: Solution structure of the autophagy-related protein LC3C reveals a polyproline II motif on a mobile tether with phosphorylation site

Figure 9

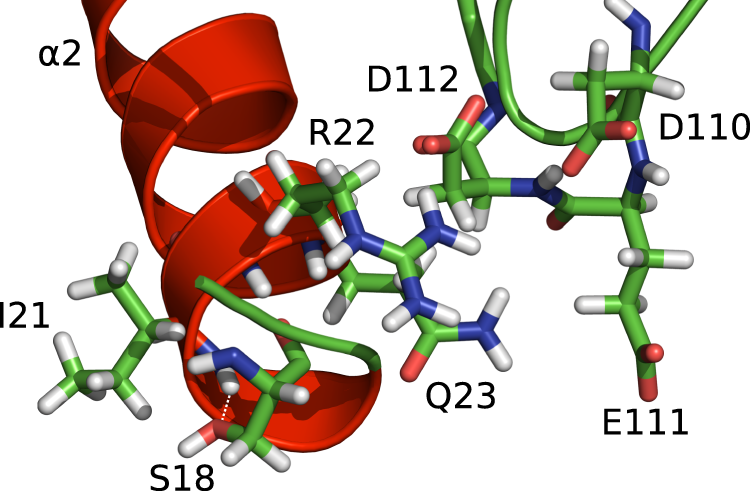

Electrostatic interactions of the acidic cluster formed by the side-chains of Asp110, Glu111, and Asp112 with helix α2 residues Arg22 and Gln23 in the crystal structure of LC3C(8–125) (PDB 3WAM14; hydrogen atoms were added with PyMOL). The backbone amide proton of Ile21 forms an N-capping motif with the side-chain hydroxyl oxygen of phosphorylation target Ser18 (dashed line). The figure was created with PyMOL (The PyMOL Molecular Graphics System, Version 1.7.2.1, Schrödinger, LLC).
