Figure 3 | Scientific Reports

Figure 3

From: Evidence for a link between the Atlantic Multidecadal Oscillation and annual asthma mortality rates in the US

Figure 3

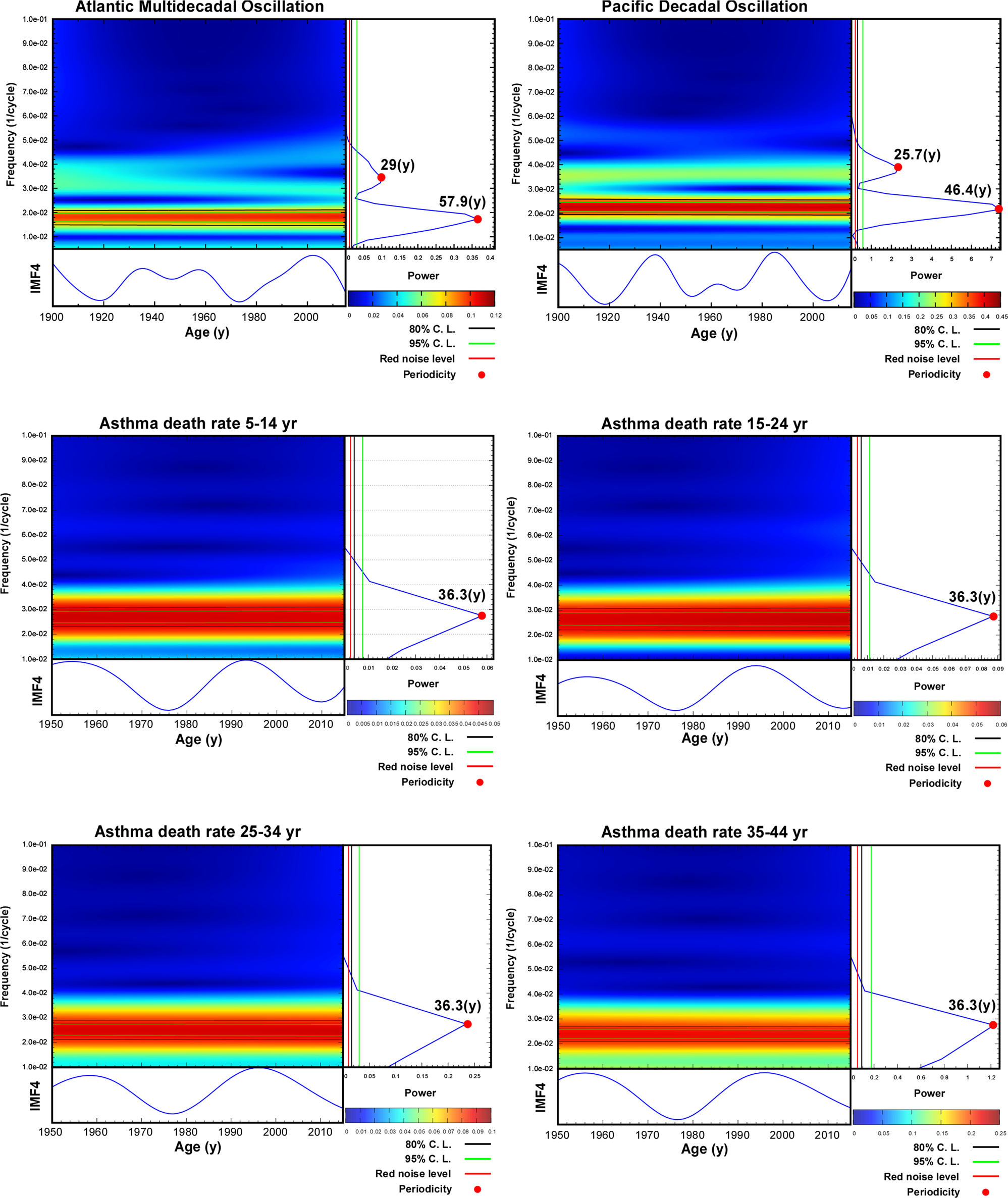

Signal analysis of the AMO, PDO, and the four annual asthma death rate age groups. In the 6 box IMF4 (horizontal boxes, blue line), Lomb-Scargle periodogram (vertical boxes, blue line), and weighted wavelet Z-transform power spectrum were reported. The green and black line represent the 95% and 80% Confident Level respectively. Significantly periodicity (red dot) and relative values expressed in years were reported.
