From: Structure-based identification of a potential non-catalytic binding site for rational drug design in the fructose 1,6-biphosphate aldolase from Giardia lamblia

Figure 2

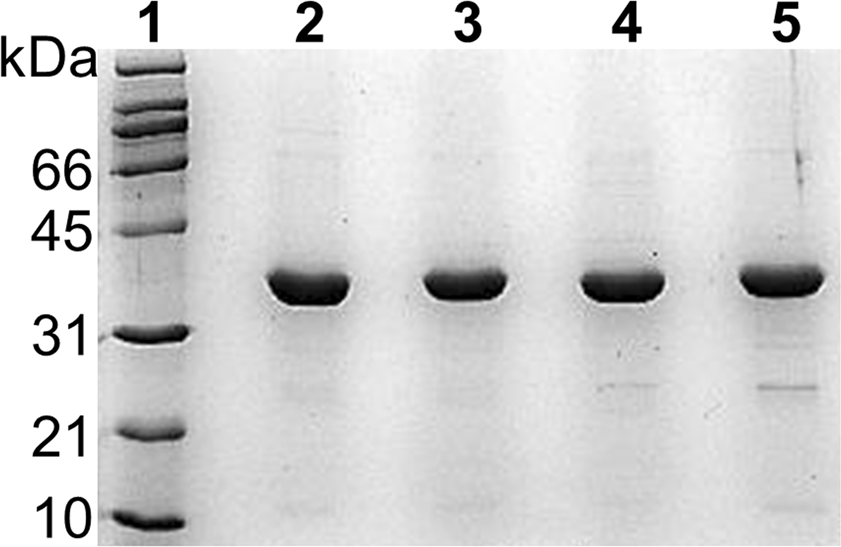

Purification of WT GlFBPA and mutants. Samples of purified proteins were loaded in 12% SDS-PAGE and stained with Coomassie blue. Lane 1, molecular weight standards. Lane 2, WT protein. Lane 3, R259A mutant. Lane 4, D278A mutant. Lane 5, R259A/D278A double mutant. Gel image was cropped and brightness and contrast were slightly modified for clarity. Full-length gel without modifications is shown as Supplementary Fig. S2.
