Figure 4
From: Resolution enhancement in scanning electron microscopy using deep learning

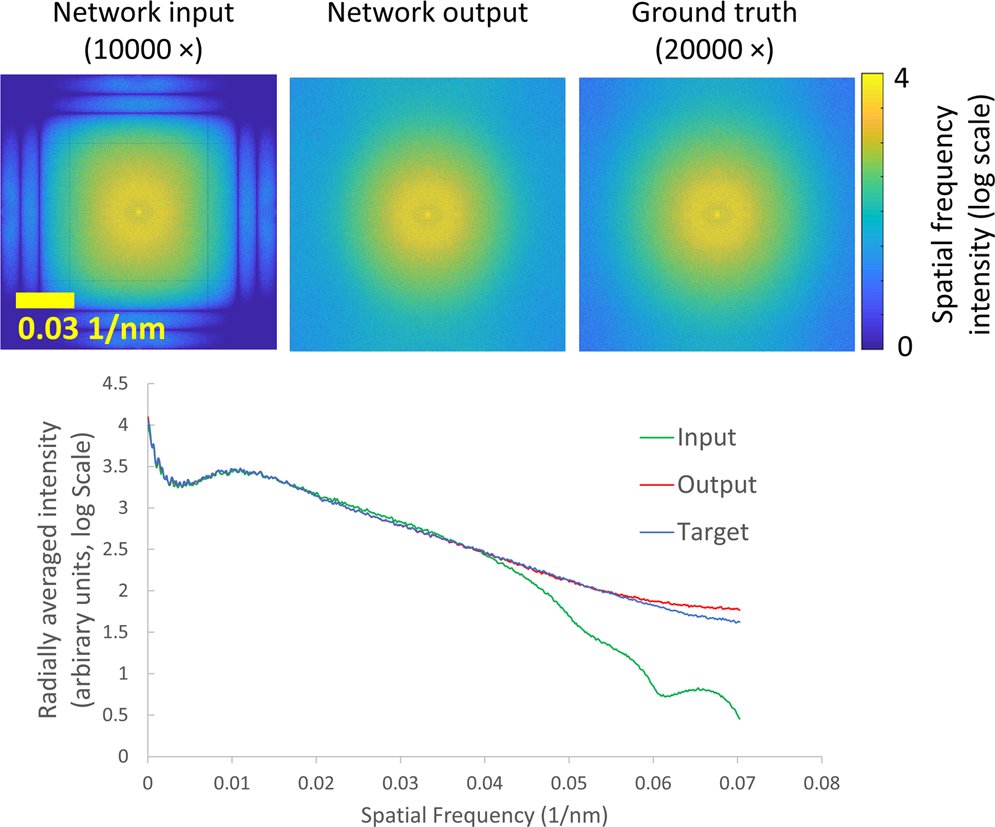

Top: spatial frequency distributions of the average of five up-sampled input, output, and ground truth images are compared. Bottom: radially-averaged plot of the above distributions. Analysis was performed on the uncropped versions of the SEM images shown in Fig. 2 as well as three additional images.
