Figure 4
From: An automated pipeline for the screening of diverse monoterpene synthase libraries

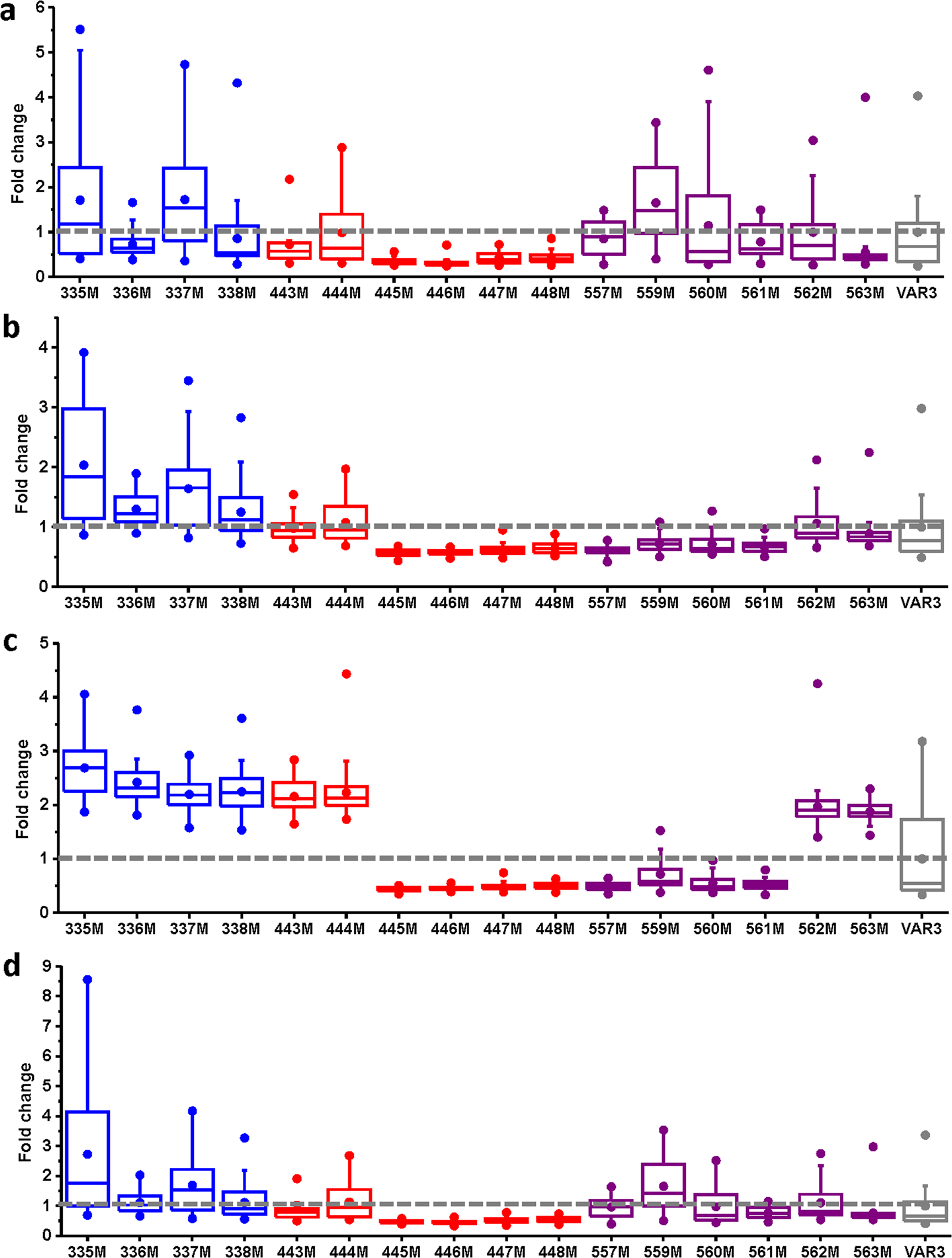

Screening and analysis of the VAR3-PinS libraries for diverse monoterpene production. A targeted analysis was conducted for the monoterpene products α-pinene (a), β-pinene (b), limonene (c) and sabinene/myrcene (d). Libraries with mutations in region 1 are in blue, region 2 in red, and region 3 in purple. The median fold-change over PinS-VAR3 (in grey) and the upper and lower quartiles are indicated. The data plotted for VAR3-PinS represents the fold change of each individual data point compared to the median of all data-points obtained for VAR3-PinS. The number of data-points for each library is between 35 and 40.
