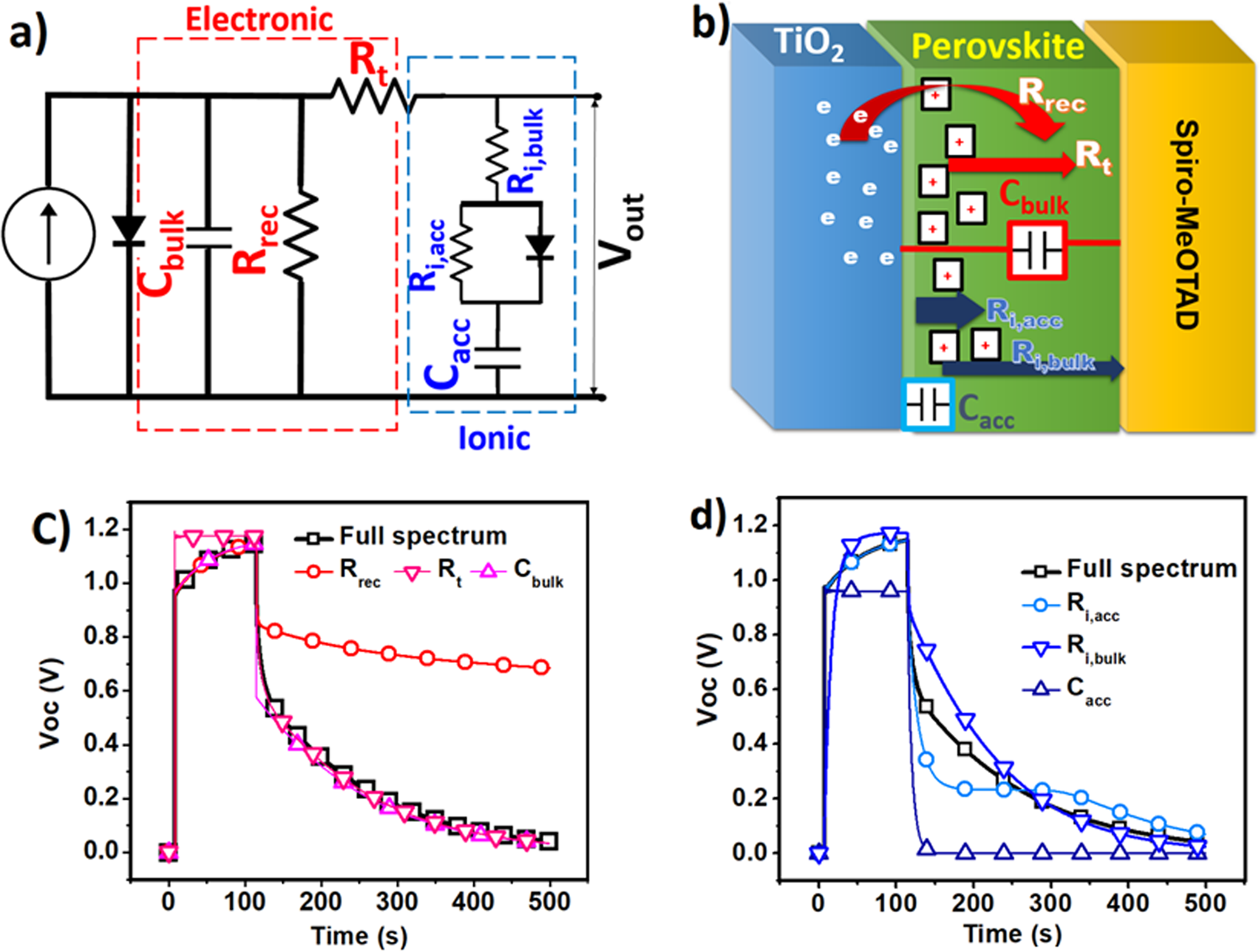

Figure 3
(a) Equivalent circuit for fitting photo-voltage rise and decay plots. MAPbI3, (b) schematic of layers of perovskite based solar cells and defined parameters. Effect of removing (c) electronic and (d) ionic elements on the fitted data related to Voc decay and rise curves.
