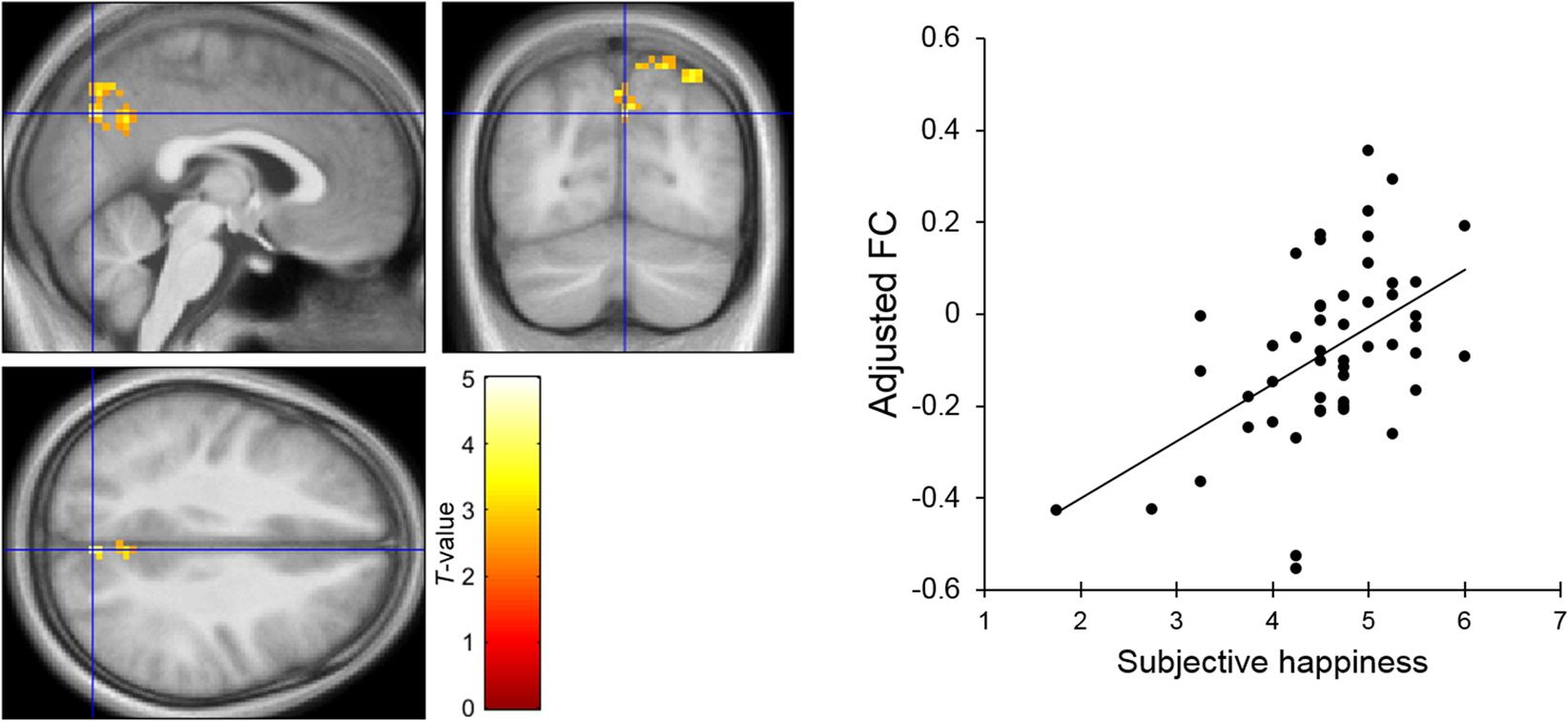

Figure 2
From: Resting-state neural activity and connectivity associated with subjective happiness
Brain regions showing a significant positive association between the subjective happiness score and functional connectivity (FC) values seeded from the right amygdala. (Upper) A statistical parametric map (p < 0.05, cluster-level family-wise error corrected) for the group analysis of the seed-based functional connectivity map. The area is overlaid on the mean spatially normalized structural magnetic resonance images. The blue cross indicates the location of the peak voxel (x = 9, y = −60, z = 42). The red–yellow color scale indicates the T-values. (Right) A scatter plot of adjusted functional connectivity parameters as a function of the subjective happiness score at the peak voxel. Effects of no interest (age, sex, full-scale intelligence quotient, and mean framewise displacement) were regressed out.
