Figure 5
From: Robust Microfabrication of Highly Parallelized Three-Dimensional Microfluidics on Silicon

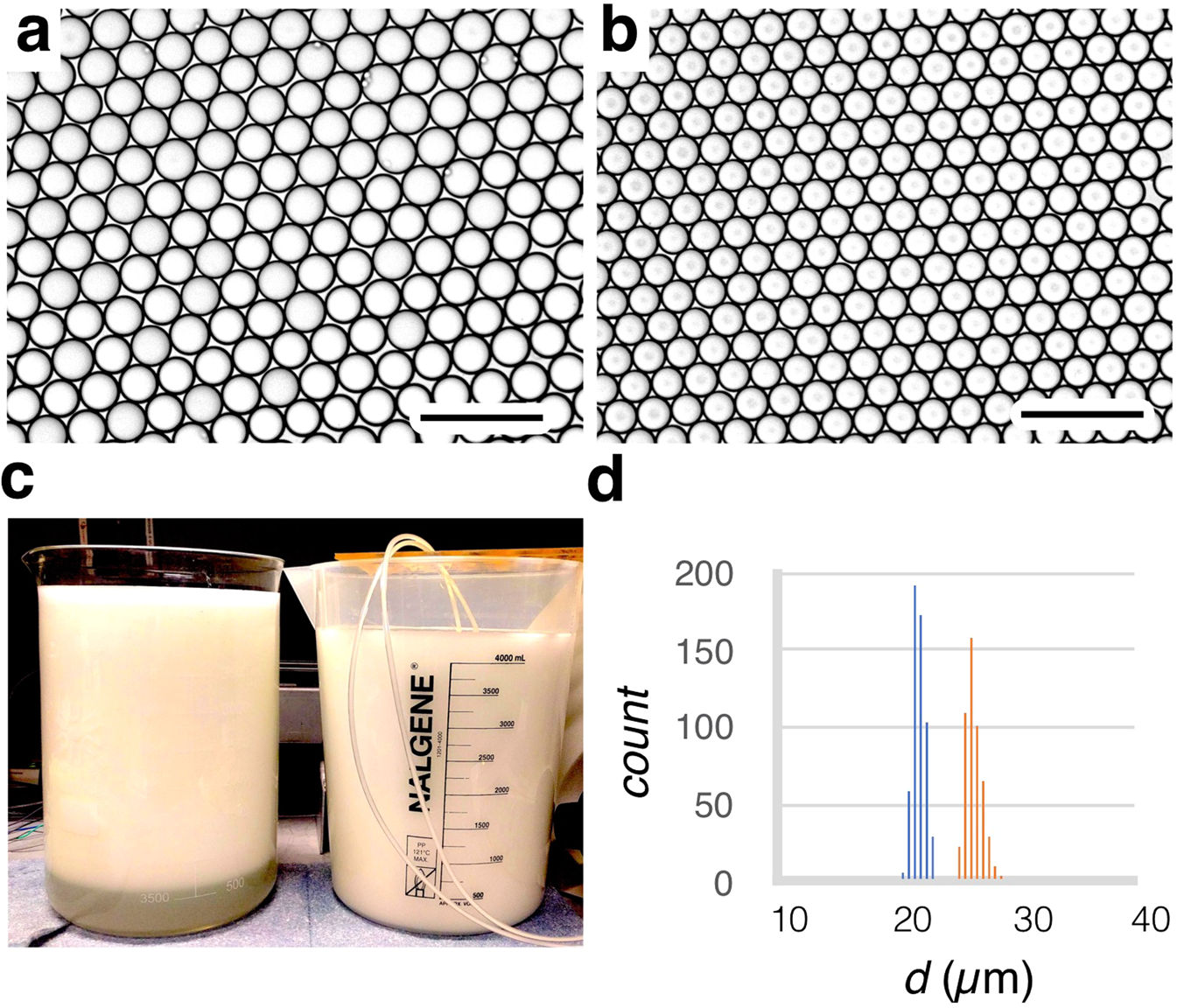

Monodisperse droplets at high throughput. (a) Optical micrographs of d = 27 µm hexadecane droplets in oil produced by the VLSDI 2.0 chip at ɸc = 1.2 L/hr and ɸd = 1.1 L/hr. Scale bar: 75 µm. (b) Optical micrographs of d = 21 µm hexadecane droplets in water produced by the VLSDI 2.0 chip at ɸc = 16.5 L/hr and ɸd = 5.1 L/hr. Scale bar: 75 µm. (c) 8 L of emulsion collected by running our chip for 20 minutes with ɸc = 16.5 L/hr and ɸd = 5.1 L/hr. (d) histogram of droplets in image (b). For both emulsions, CV< 5%.
