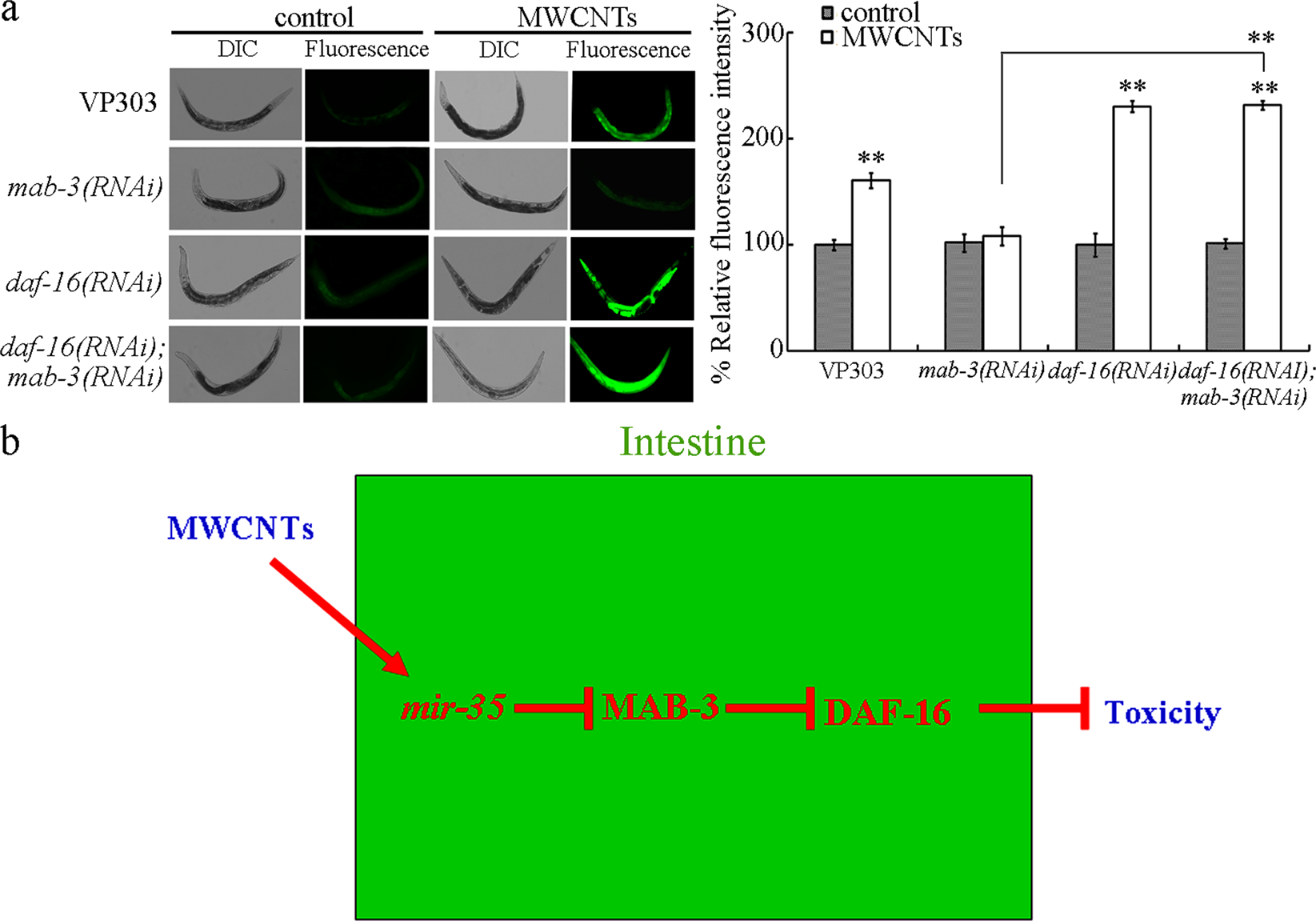

Genetic interaction between DAF-16 and MAB-3 in the intestine to regulate the response to MWCNTs. (a) Genetic interaction between DAF-16 and MAB-3 in the intestine to regulate the MWCNTs toxicity in inducing intestinal ROS production. MWCNT exposure concentration was 0.1 μg/L. Bars represent means ± SD. **P < 0.01 vs control (if not specially indicated). (b) A diagram showing the mechanism for intestinal mir-35 in regulating the response to MWCNTs in nematodes.
