Figure 3 | Scientific Reports

Figure 3

From: Comparative Transcriptome Analysis of Pinus densiflora Following Inoculation with Pathogenic (Bursaphelenchus xylophilus) or Non-pathogenic Nematodes (B. thailandae)

Figure 3

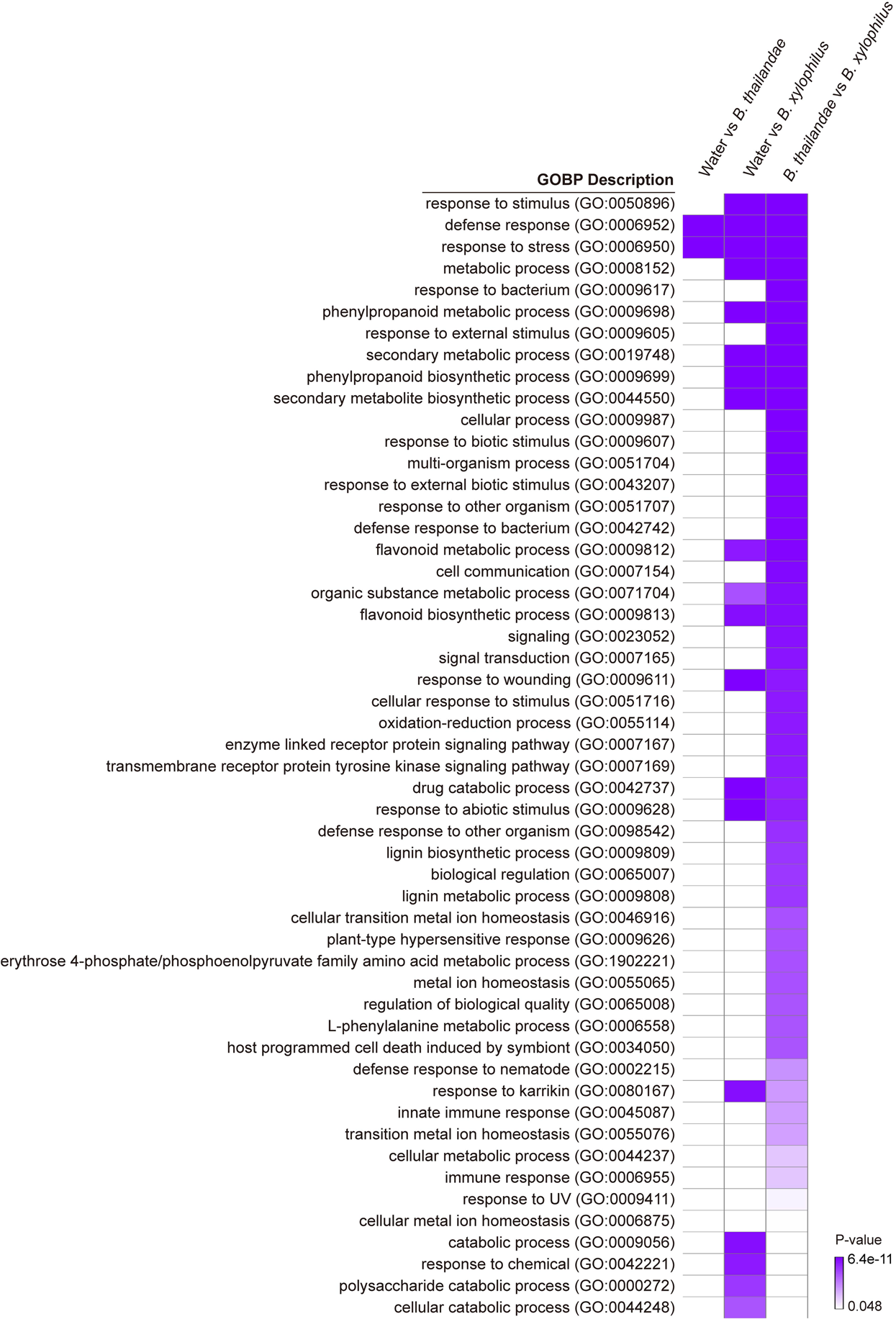

Heatmap of gene ontology (GO) analysis of differentially expressed genes in comparisons between Korean red pine trees treated with water, Bursaphelenchus thailandae, and B. xylophilus. The heatmap shows the GO biological process (GOBP) terms associated with the indicated comparisons (with Fisher’s exact test with FDR corrected P-value < 0.05). Color Key indicates Fisher’s exact test with FDR corrected P-value.
