From: Simultaneous Proton Transfer Reaction-Mass Spectrometry and electronic nose study of the volatile compounds released by Plasmodium falciparum infected red blood cells in vitro

Figure 6

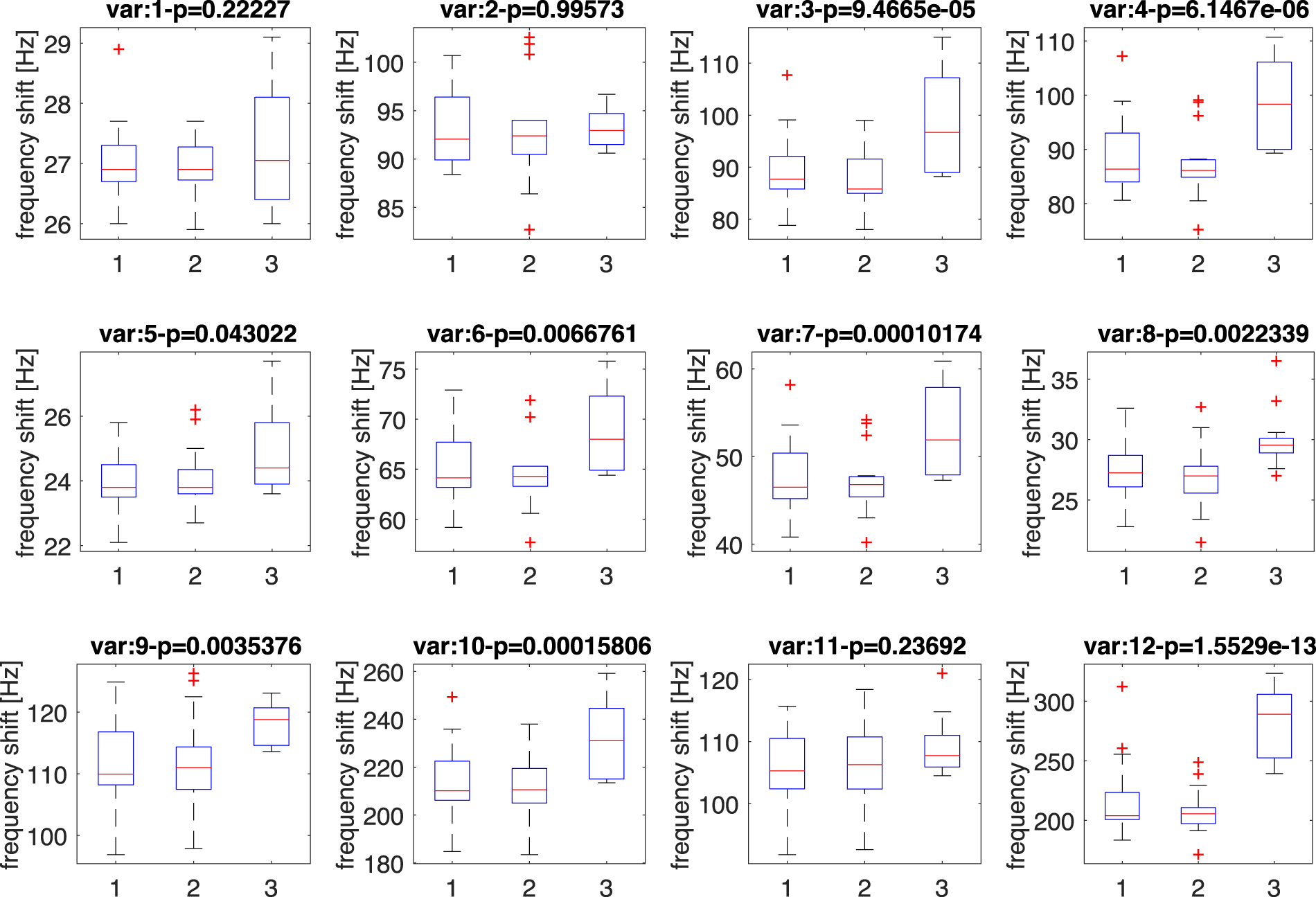

Variance test of sensor data. Each box-plot illustrates the statistical distribution of the corresponding sensor. The header of each box-plot reports the p-value related to at least the separation of one of the three groups respect to the others. Classes are labeled as 1: RBCs, 2: asexual parasites, 3: gametocytes.
