From: An azimuthally-modified linear phase grating: Generation of varied radial carpet beams over different diffraction orders with controlled intensity sharing among the generated beams

Figure 5

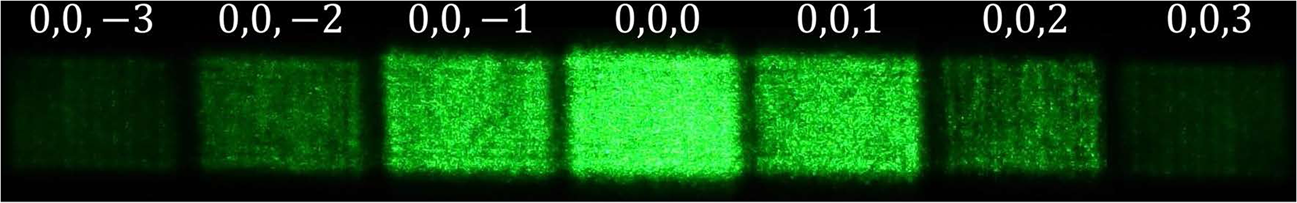

Diffraction pattern of a plane wave from an SLM at \(z=350\,{\rm{cm}}\) when a 1D linear phase grating with a sinusoidal profile in the x direction and a period of 0.11 mm is imposed on the SLM. Here \(\gamma =\pi /2\). This pattern corresponds to the (0,0) diffraction order of the SLM and was formed on a diffuser and imaged by camera.
