Figure 1
From: Magnetic Particle Imaging meets Computed Tomography: first simultaneous imaging

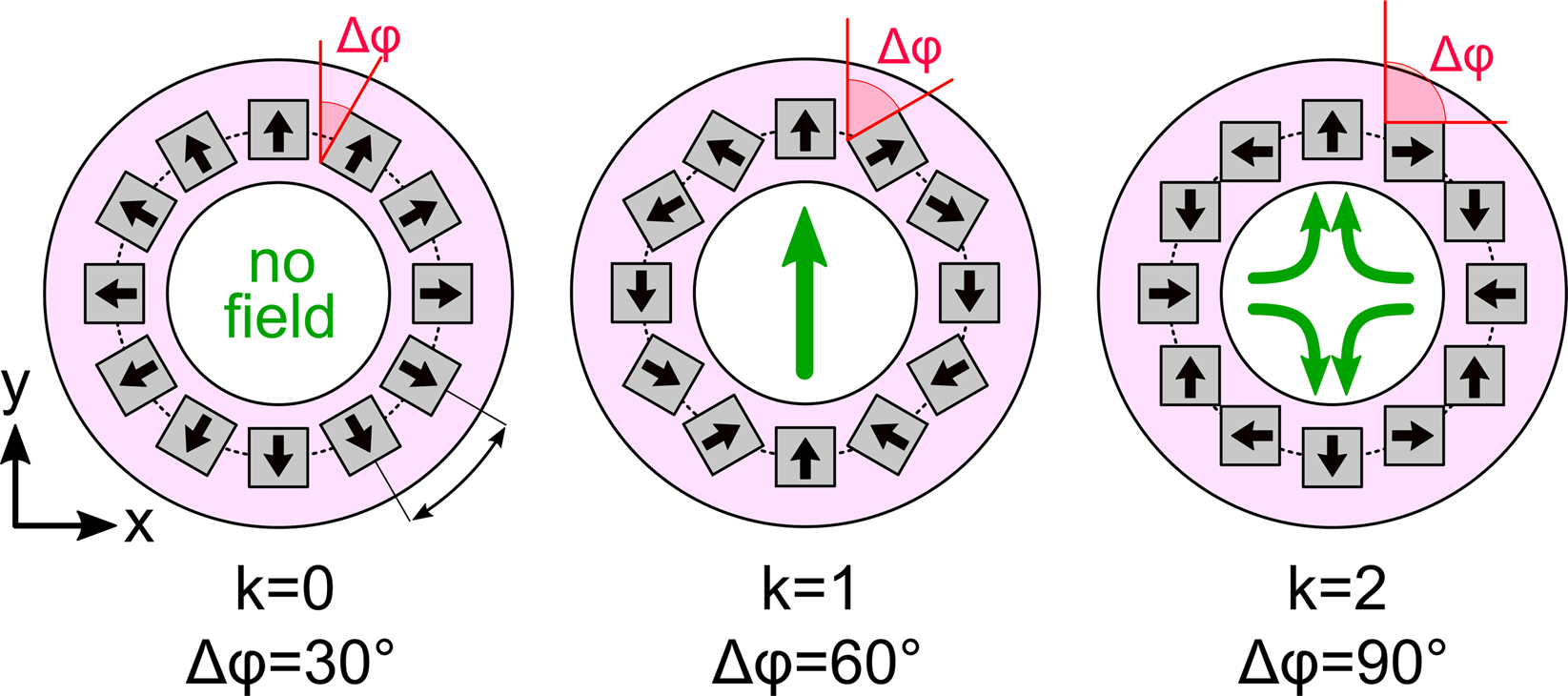

Halbach rings with different angles Δφ between adjacent permanent magnets and the resulting magnetic field in the center of the Halbach rings. The black arrows indicate the magnetization of the permanent magnets, the green arrows the resulting magnetic field lines generated by the Halbach rings.
