Figure 6
From: Construction of three-dimensional temperature distribution using a network of ultrasonic transducers

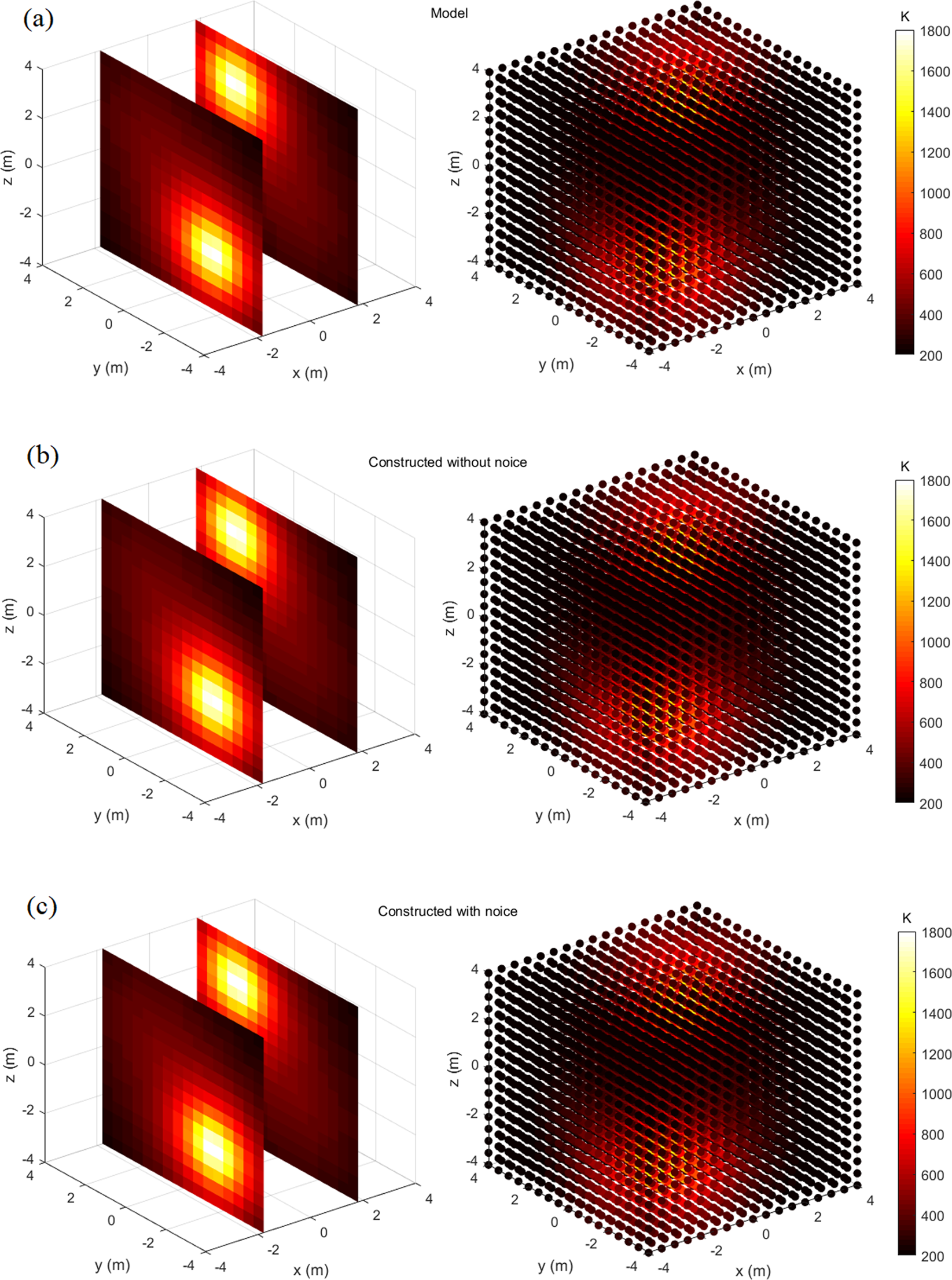

Two-peak temperature distribution model and its constructions, the left one is slice map of temperature distribution, and the right one is scatter plot of temperature distribution: (a) Model; (b) Construction without noise; (c) Construction with noise.
