Figure 2
From: Diffusion Tensor Imaging of the Kidney: Design and Evaluation of a Reliable Processing Pipeline

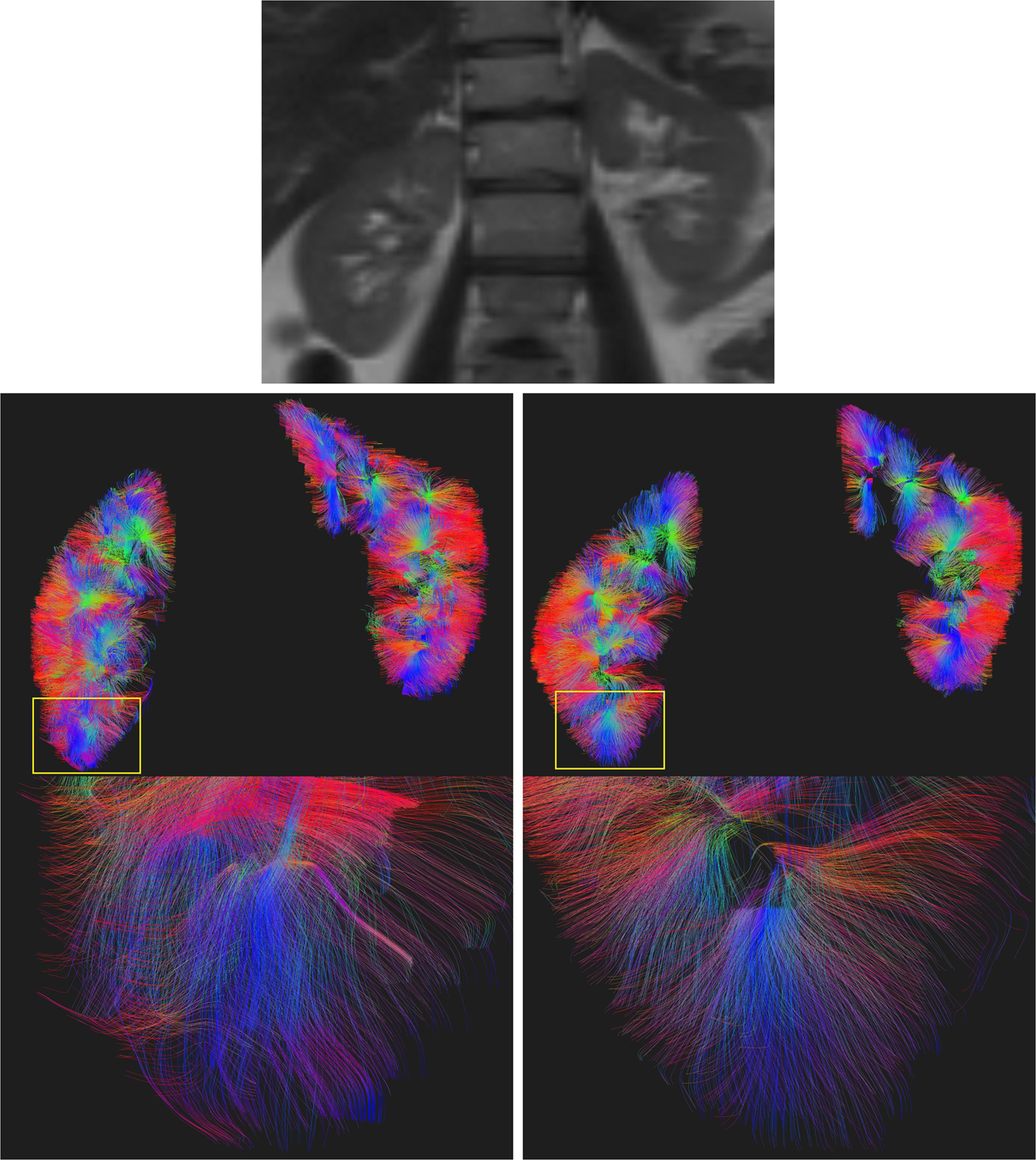

HASTE image (upper) and tractography reconstructions from DTI without processing (bottom left) and with topup-s2v pipeline (bottom right) of a 25-year-old female volunteer. A region of the tractography was zoomed to highlight the differences of the results between the processing pipelines.
