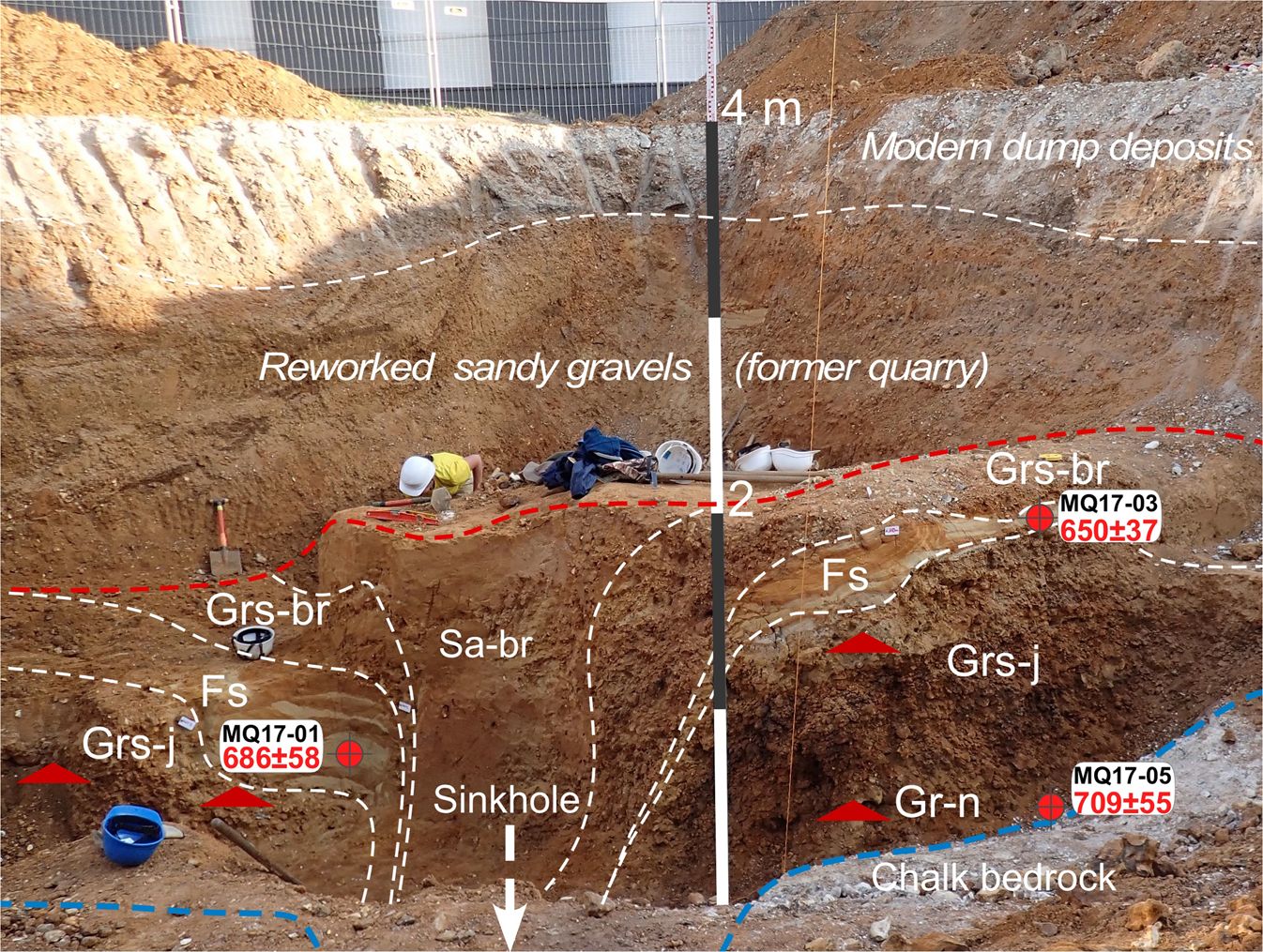

Figure 4

Stratigraphic sequence exposed during the excavation (height: 4 m). From the top below the reworked sandy gravels from the former Moulin Quignon quarry: Sa-br: Brown-red compact clayey sands preserved in deep dissolution sinkholes. Grs-br: brownish to reddish sandy heterometric clayey rounded gravels with small (reworked) tertiary pebbles. Fs: Yellow fine to medium laminated sands with thick (2–5 cm) red to orange oxidized bands. At its base, in places this unit shows a layer of laminated greyish clayey silts with thin oxidized orange (Fe) and black (FeMn) bands. Grs-j: Heterometric rounded sandy flint gravels with abundant yellow sandy matrix and irregular reddish to orange oxidation (Fe) bands and with (reworked) tertiary pebbles (1–4 cm). Gr-n: Strongly heterometric rounded flint gravels, without any matrix, (mainly 2–4 cm but including irregular elongated nodules up to 30 cm) and scattered (reworked) tertiary pebbles (1–4 cm). This facies is characterized by strong weathering indicated by the occurrence of brownish to blackish Fe-Mn coatings on all the flint nodules and pebbles. All the units described above are free of CaCO₃ due to dissolution and weathering processes that affected the whole sequence after its deposition by the river. Chalk: weathered (soft) Upper Cretaceous chalk bedrock including numerous irregular large elongated flint nodules (20–40 cm in length).
