From: Modeling of partial dome collapse of La Soufrière of Guadeloupe volcano: implications for hazard assessment and monitoring

Figure 1

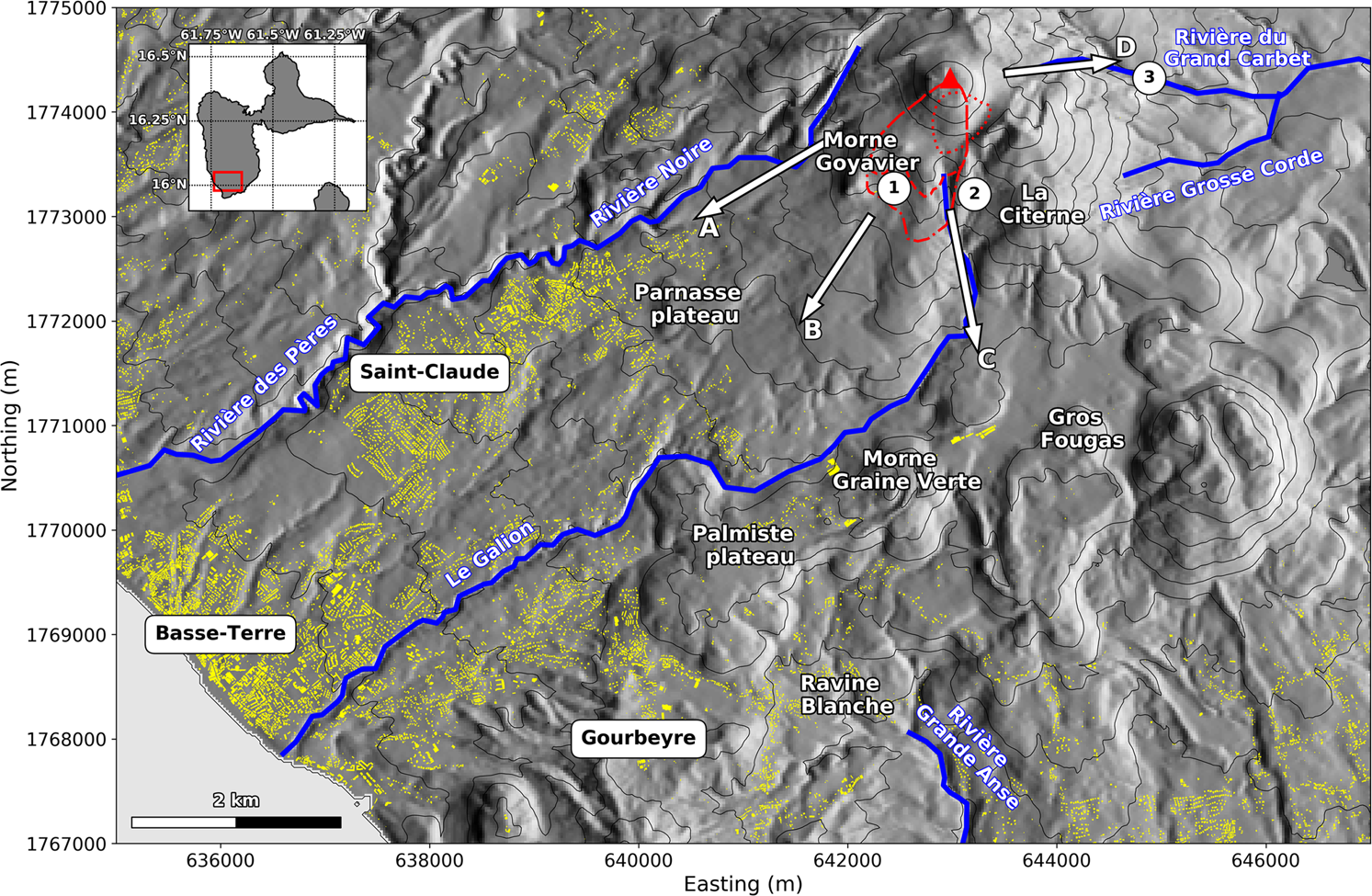

Rivers and main topographic features around La Soufrière of Guadeloupe volcano (red triangle), along with the three main cities (Saint-Claude, Basse-Terre and Gourbeyre). The upper left insert features the Guadeloupe island, with the red rectangle matching the extent of the map. ① Ravine des Bains Jaunes, ② Ravine de la Citerne, ③ Second Carbet waterfall. Arrows A, B, C and D identify the main flow pathways discussed in the main body of the text. Yellow patches are buildings (data from IGN BDAlti). The lateral extent of some initial unstable volumes is displayed with the red lines. Dashed-dotted line: topA2 and midA2 scenarii; dashed line: topA1_inf and topA1_sup scenarii; dotted line: dolomieu scenario. The DEM is from IGN BDTopo, coordinates: WGS84, UTM20N. The contour interval is 100 m.
