Figure 5

From: A versatile platform technology for recombinant vaccines using non-propagative human parainfluenza virus type 2 vector

Figure 5

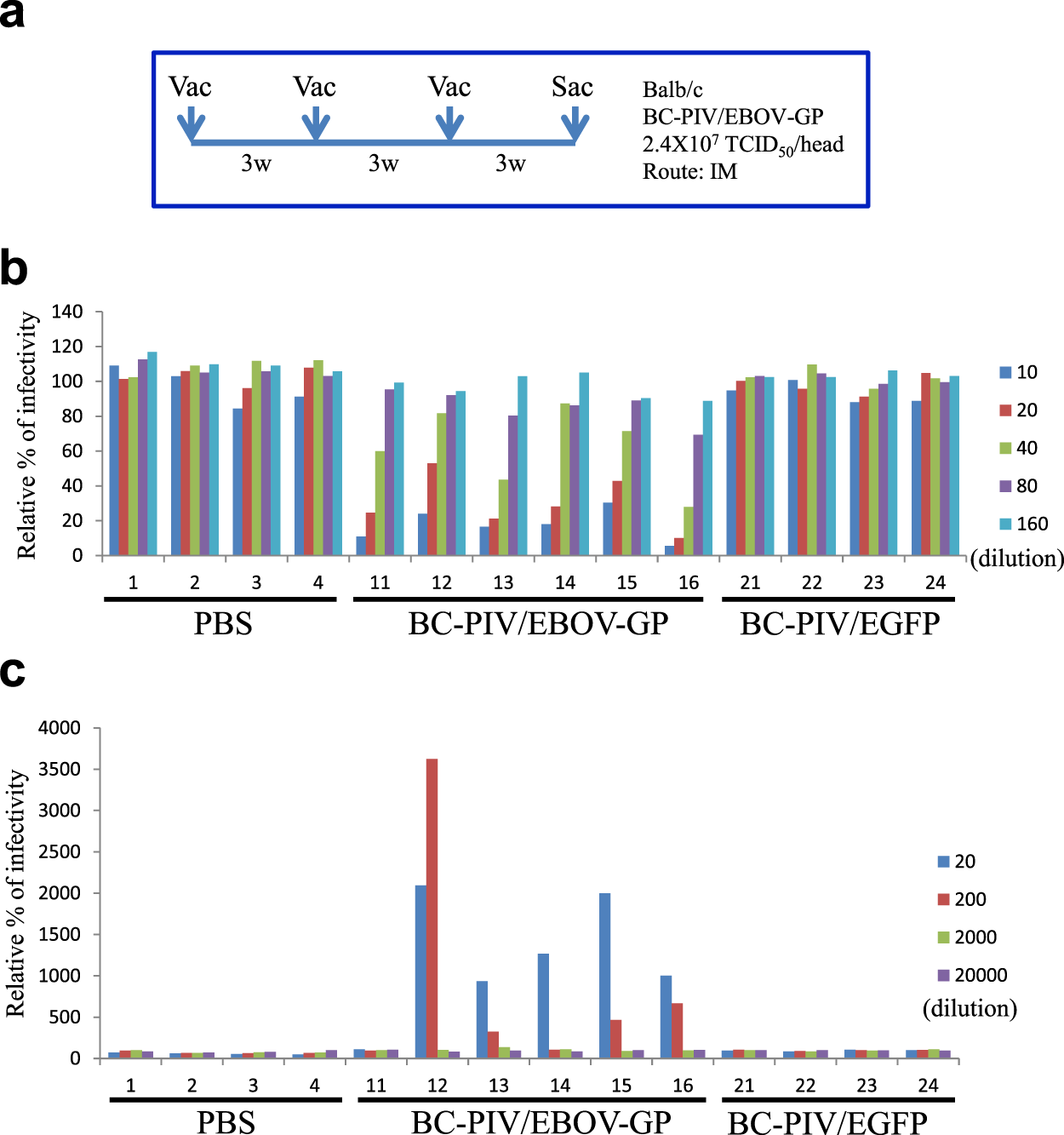

Induction of neutralizing antibody in mice vaccinated with BC-PIV/EBOV-GP. (a) Protocol for vaccination of mice. Vac, vaccination; Sac, sacrifice; IM, intramuscular injection. (b) Neutralization tests against EBOV-GP-pseudotyped virus using vaccinated mouse sera. (c) ADE tests of pseudotyped EBOV infection using the mouse sera used in b. All data are representative of three independent experiments. Each number represents the ID number of the mice.
